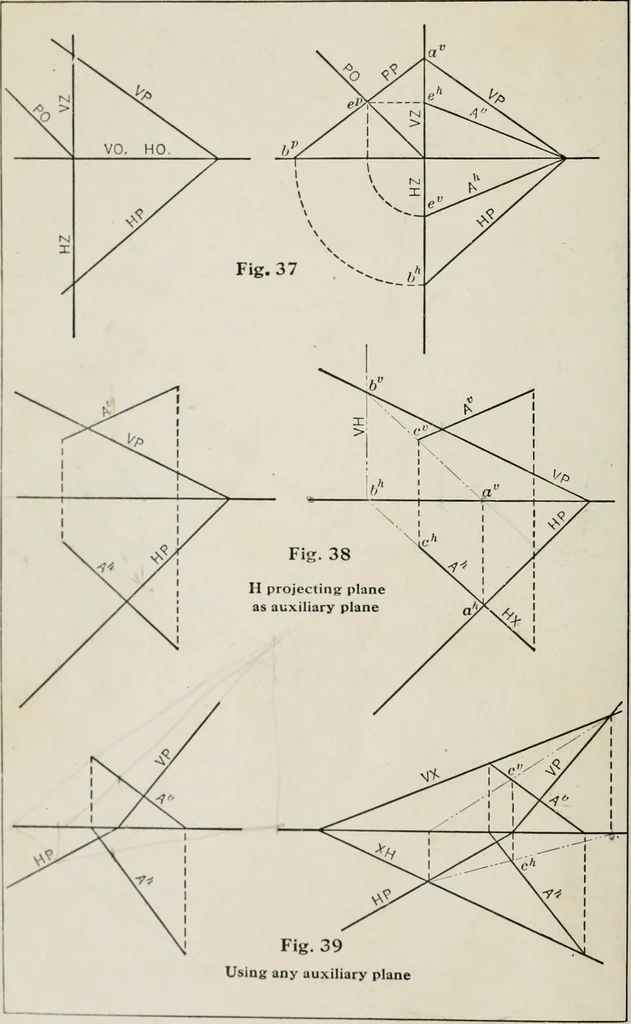

c) VP I vo A. A \ ^\ HO Fig. 36 18 PEINCIPLEvS OF DESCRIPTIVE GEOiMETRY … POINTS, LINES AND PLANES 19 tile Plane, so also must the line of intersection be perpen-dicular. The V and H Projections, therefore, of this lineare the projections of the line of intersection of the twoplanes parallel to the GL. 28. To find where a line pierces a plane. Let P be the given Plane…
