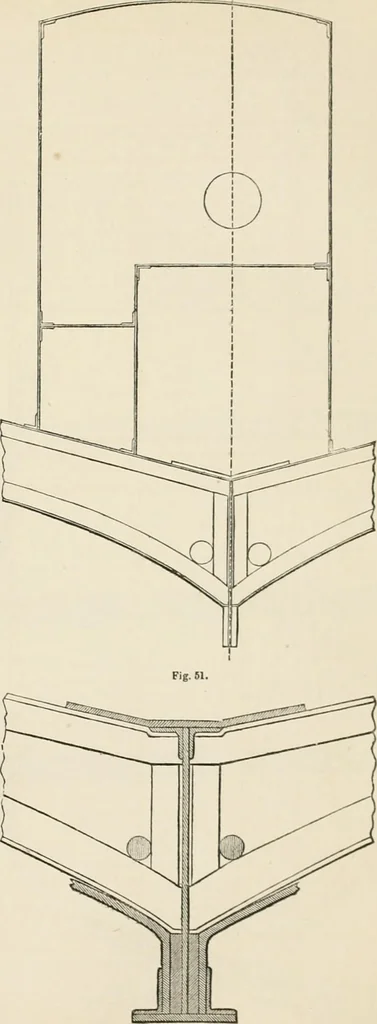

ed inthe bottom, and a reverse angle-iron on every frame, 4 x 3 X iV,from floor to gunwale, the whole length of the vessel. ILDING. 103 Plates.—Garboard-strake, |J plates, as broad as can be procured. Practicalor worked ; bottom-plates -JJ, next plates up to the wales -if, from Building the wales… … Fig. 52. strake, \^ thick, to be doubled right fore and aft, and butt-strapsinside, as in single plates, all double riveted from keel to gunwale,and all butts to be flush ; the upper or sheer-strake to go 12 inchesabove top of water-way, as per sketch. All spaces formed by theprojections of the…
