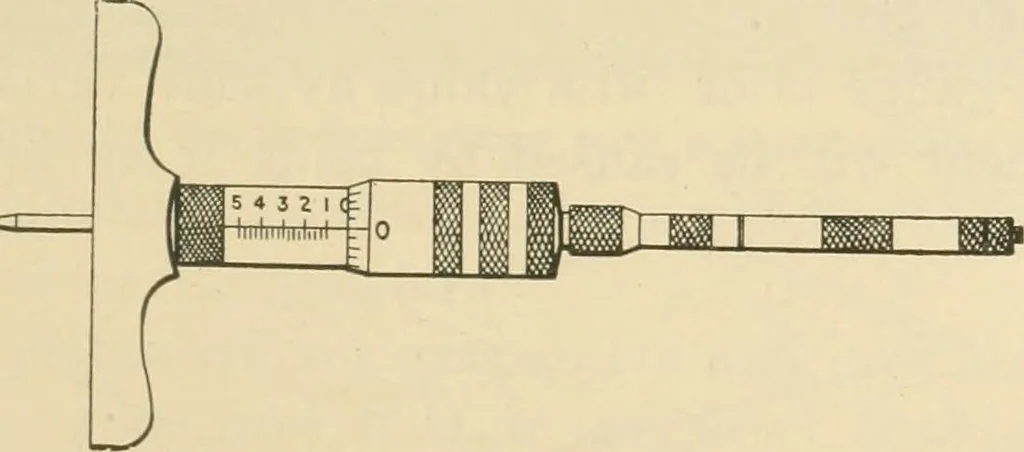

Fig. 112—A vernier caliper in use as a height gauge A surface gauge is a very important tool which is usedin marking out work to be machined. Such a gauge is il-lustrated in Fig. 114. It will be noticed that it consists … Fig. 113—A micrometer depth gauge of a base, standard and a scriber or sharp-pointed steelrod straight at one end, bent at the other and so fixedthat it can be moved up and down the standard. It willalso be noticed that the l)ottom of the standard is pro-vided with a thumb screw and by means of…
