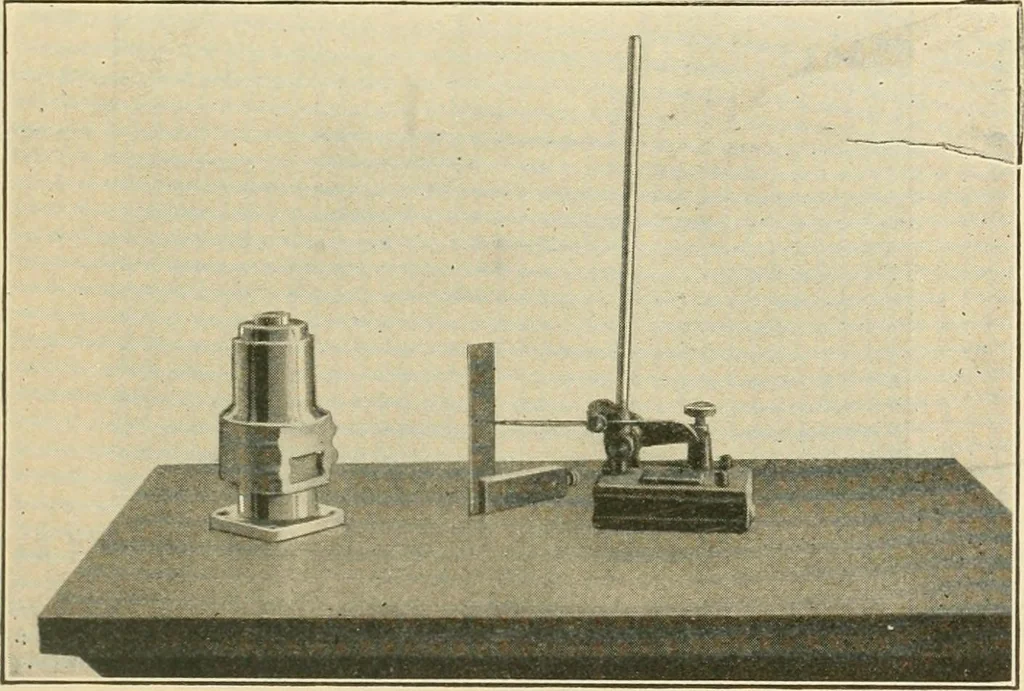

compressor cylinder is shown in Fig. Measuring Instruments 101 117. The scriber is made of liardeiied steel and there-fore it will scratch iron, steel, brass and all the softermetals. If the portholes on the model cylinder shown inFig. 117 were to be 1% in. from the base, the surfacegage would be… … Fig. ii6—Adjusting the surface gauge with a small square and scale with the cylinder a distinct scratch will be made in theproper place on the cylinder. Surface plates are very expensive and it is necessaryto take very good care of their surfaces. Moisture willcause a surface plate to deteriorate…
