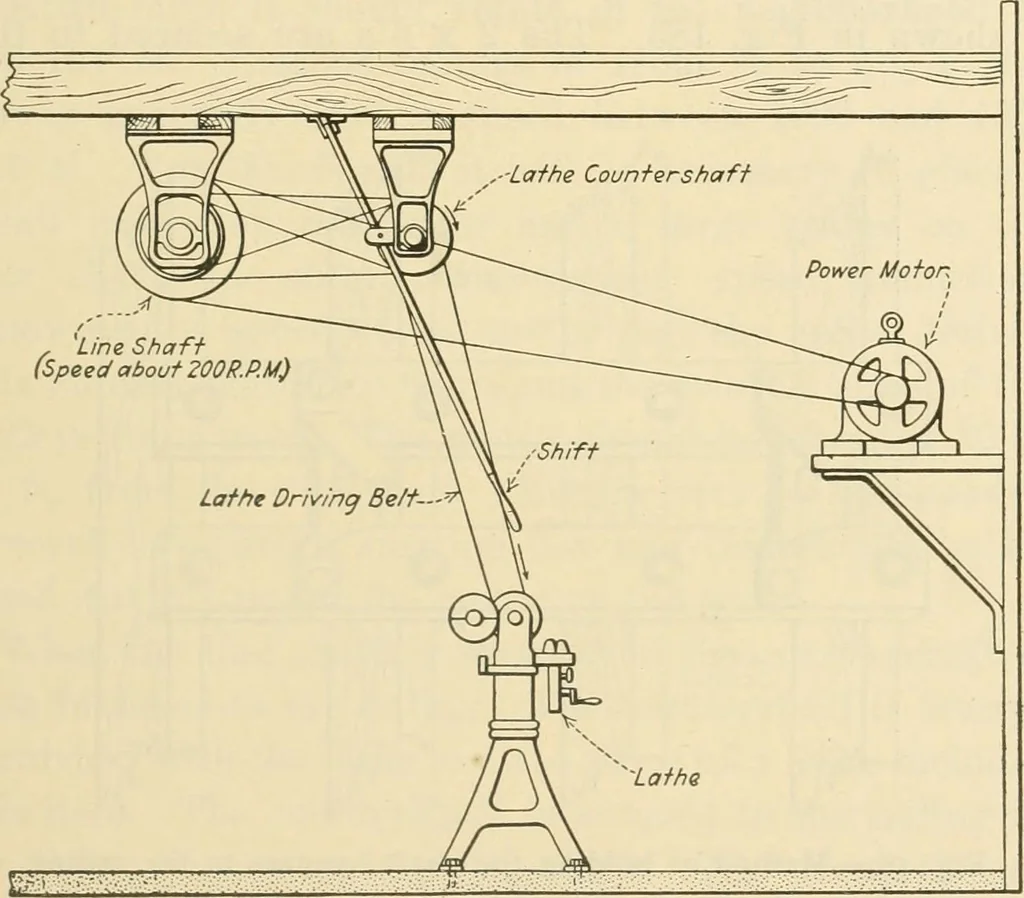

^Lafhe [o]::^:::^] Fie. 182A—The layout of a small lathe shop Advanced Lathe Work 149 runs from this to the line shaft and from the line shafttwo belts rnn to the lathe counter-shaft. One of the beltswhich runs to the lathe counter-shaft is twisted and bymeans of a clutch the rotation of the lathe… … Fig 182B—The position of the lathe in relation to the countershaft idle pulley but it is caused to take the load of the latheby a wooden lever within reach of the Avorker. This leveractuates a clutch and when thrown to one side it engagesthe pulley upon which the twisted belt runs or the pulleyupon…
