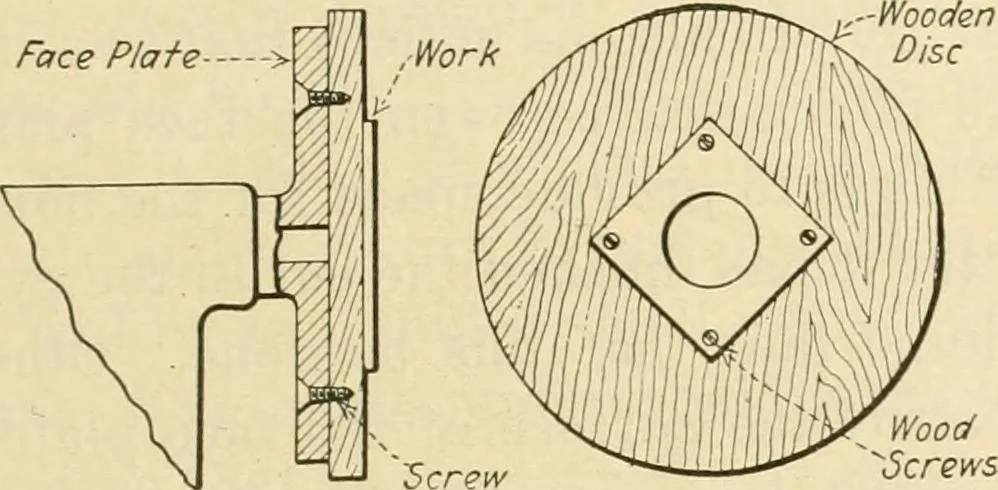

the lathe the threads andthe nose of the lathe should be wiped off carefully andthe internal threads of the face plate should also becleaned carefully in order to prevent a chip of metalfrom getting between the face plate and the lathe spindle.This would cause the face plate to run out of true.… … Fig. 197—How a piece of sheet metal may be turned out on the lathe stock and provided with holes through which the smallcarriage bolts pass. The bolt passes through the faceplate A\^th the threaded end on the outside so that thenuts can be tightened conveniently. Before the nuts are ■Wood strips V-…
