Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 185

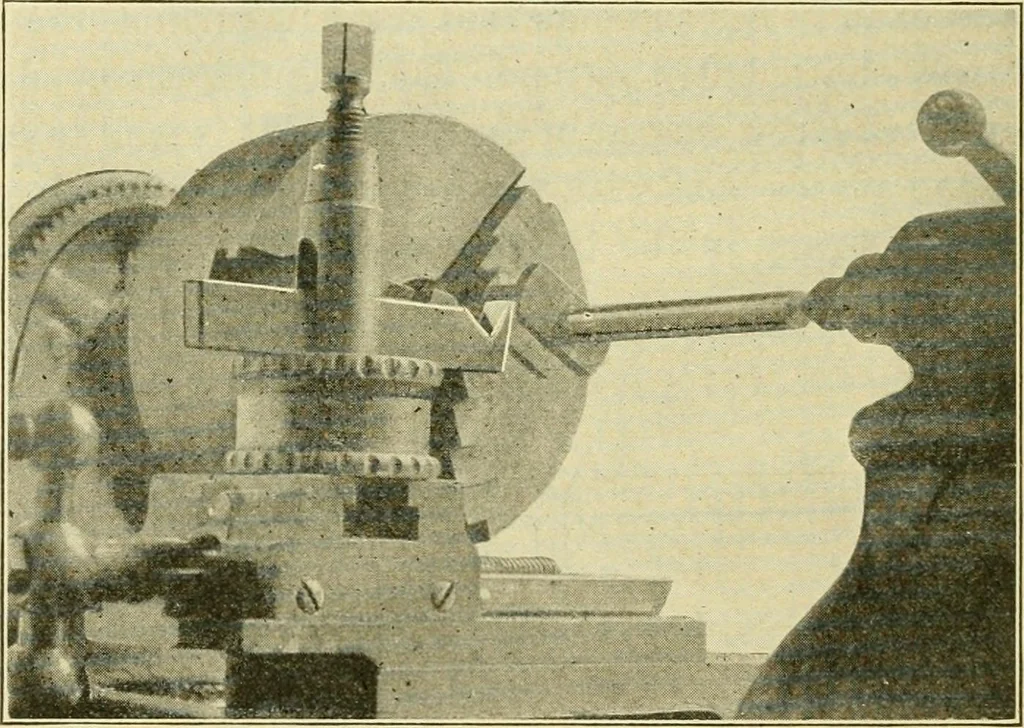

is sho^^^lin place on a shaft. In using such plates it is well toreinforce the work with heavy dowel pins as done on the 184 Shop Practice for Home Mechanics smaller crankshaft. Some mechanics prefer to havepieces cast on the crankshaft which take tlie place of theend plates. After they serve their… … Fig. 219—Turning a small, single-throw crankshaft AVe will now turn our attention to built-up crank-shafts, which are much easier to produce than those thatare turned to diameter on the lathe and therefore theyare more apt to appeal to the mechanic who is not suffi-ciently expert in the use of the…
Machine-shop practice · Handicraft
