Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 213

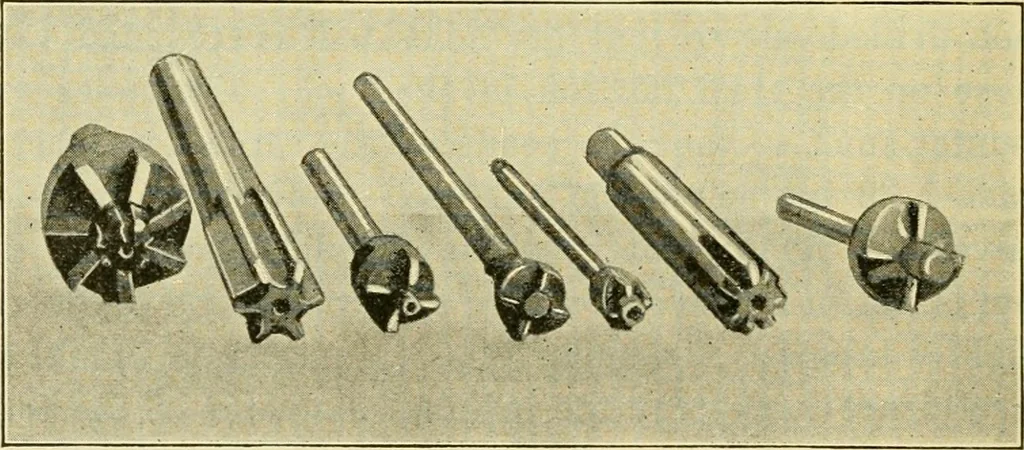

t shouldbe inserted very easily and advanced into the bore veryslowly, well wetted with cutting compound or soapywater. A variety of home-made tools is shown in Fig. 247.These are tools for special purposes on the lathe and canbe made by the amateur mechanic. In the group will befound special… … Fig. 247—A number of different cutters for use on a lathe a pin and a hole a little larger than the diameter of thispin is first drilled in the work. The pin revolves in thishole and thereby keeps the arboring tool on center. Suchan arboring tool can be made from a piece of tool steelturned to the…
Machine-shop practice · Handicraft
