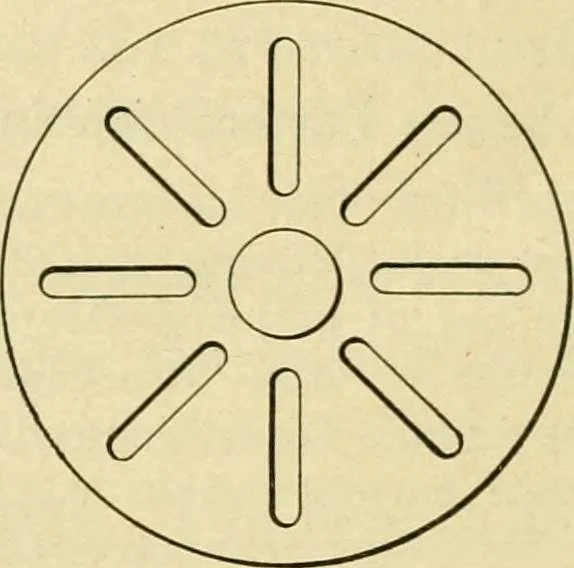

c. Briefly stated, this is the processby Avhich patterns are used in producing metal castings. Before going farther into the production of Avoodenpatterns, it would be well to give the reader a better ideaof how a pattern is used, that is, just hoAV the impression 229 230 ^^hop Practice for Home… … Fig. 259—A lathe face plate to be cast shoA\Ti in Fig. 259 is to be cast. The pattern is firstplaced face down upon what is knoMTi as a mouldingboard. This is shoA\ai at Fig. 260. With the pattern inthis position, what is known as a drag is placed over it asillustrated in Fig. 261. A drag is…
