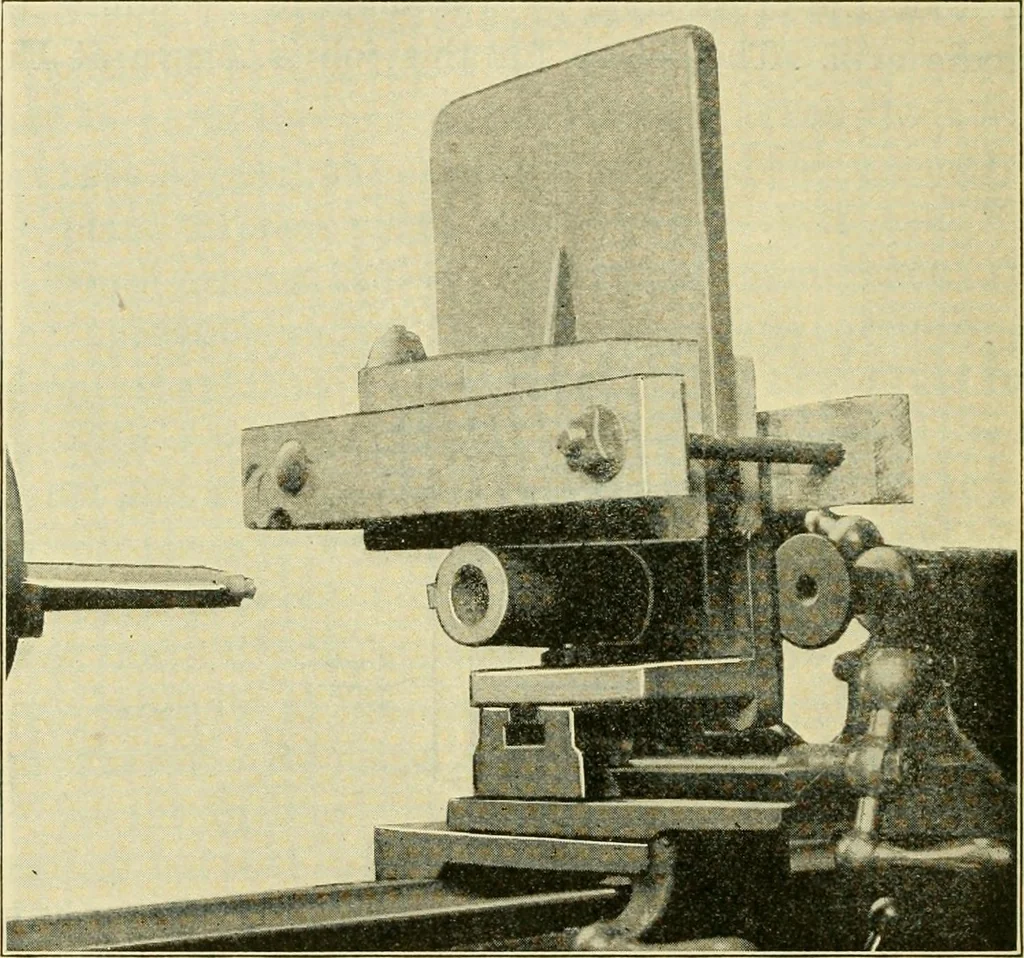

ing at exact right anglesto the lathe bed. This done, the casting is ready to bemounted. The blocks used between the angle plate andthe casting must be planed down so that they are per-fectly true. The two strips of clamps which strap thecasting to the angle plate should be cut from hard wood. 284… … Fig. 297—The drilling table of the drill press mounted in the lathei for boring in relation to the cutting tool which is in the chuck. Itmay be necessary to place a couple of small blocks underthe casting to bring it to this position. When in thisposition, the adjusting screws on the cross slide of…
