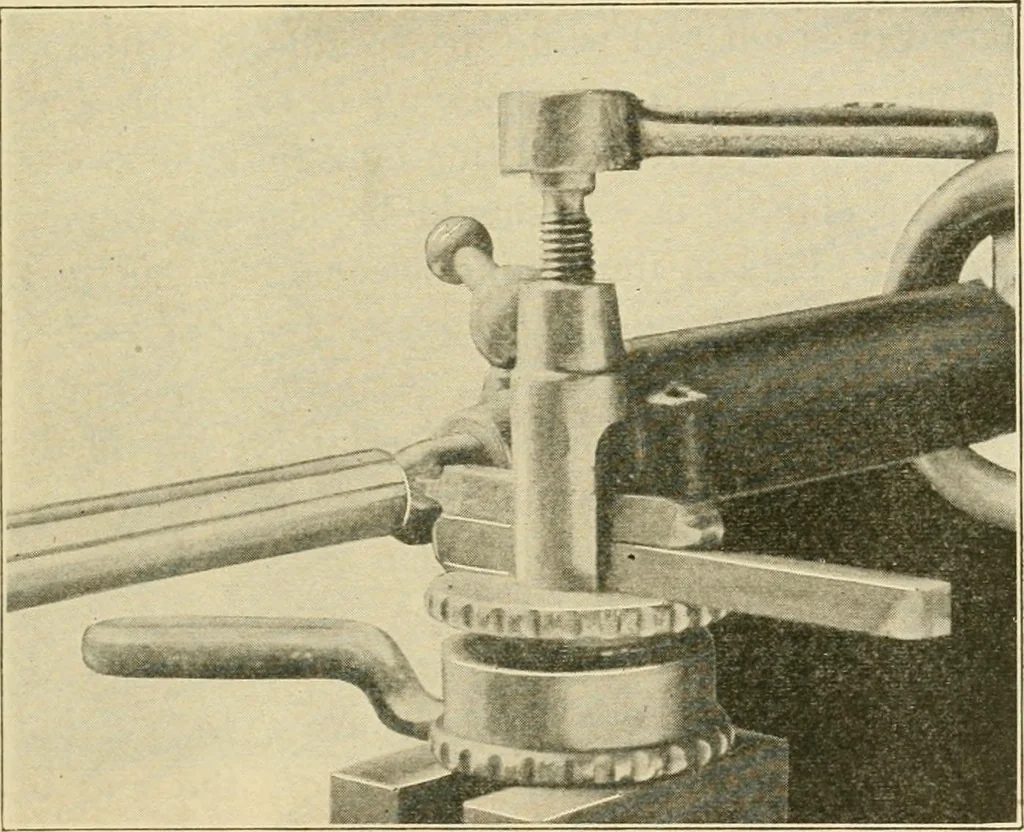

her finish by the use of a smoothfile. After the file is used, the surfaces should be pol- Construction of Small Poiver Driven Drill Press 287 islied with fine grit Carborundum cloth. The pulleys arethen laid away for future use. The standard of the machine is cut from a piece ofstandard one-inch… … Fig. 298A—The lathe tool in place for cutting the key-way surfaces are finished up with a smooth file and the holeshown drilled. The standard should then be mounted inthe lathe using the center rest. When revolving at highspeed, it can be polished with fine grit Carborundumcloth. After it is nicely…
