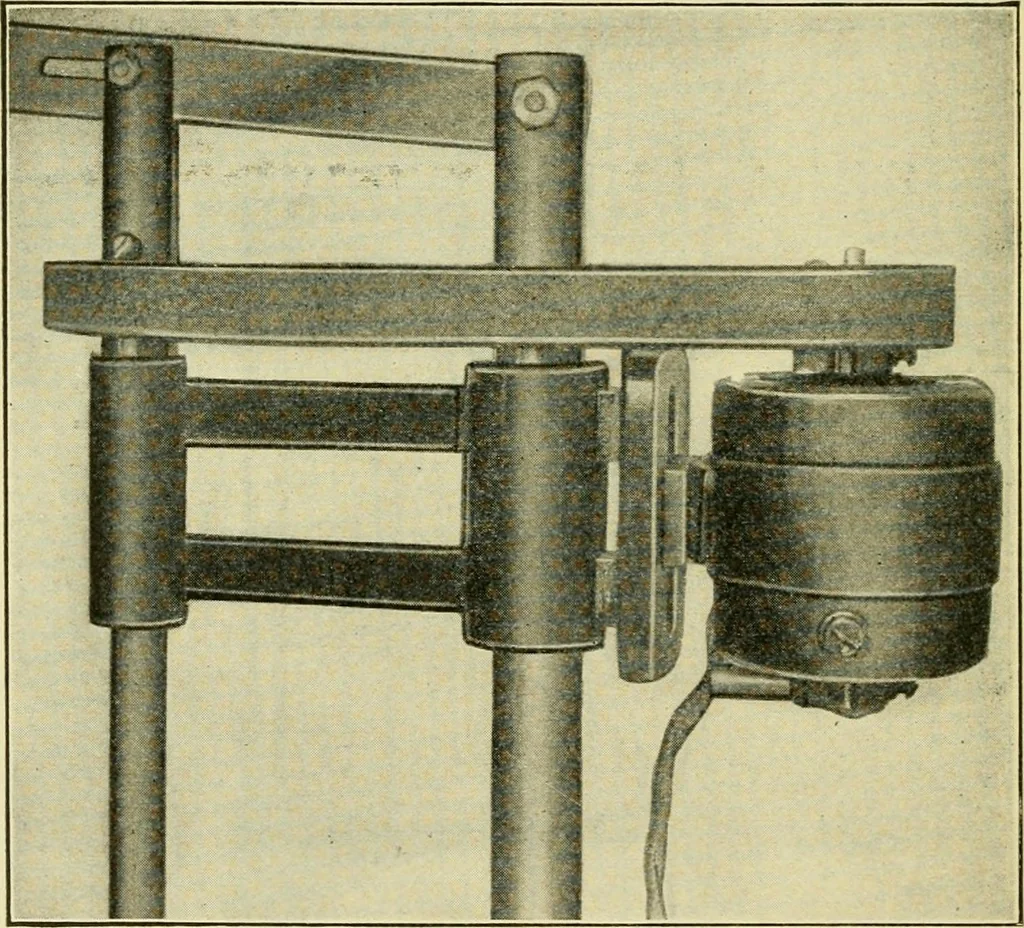

in cutting the spin-dle bearing. AVlien this is done the pulley is mountedin the vise and a keyAvay cut in it with a small hack saw. 292 Shop Practice for Iluiae Mechanics This kej^ray should have the same width as the keywayin the spindle. Two slots the width of the keyway arecut with a hack saw… … Fig. 300A—A close-up view of the motor a little smaller so that it will slip freely into the keywayof the spindle. All the castings of the machine are now carefullyenameled and set away to dry. When they are dry theassembling of the machine can be proceeded with. Thiswill be made very clear by…
