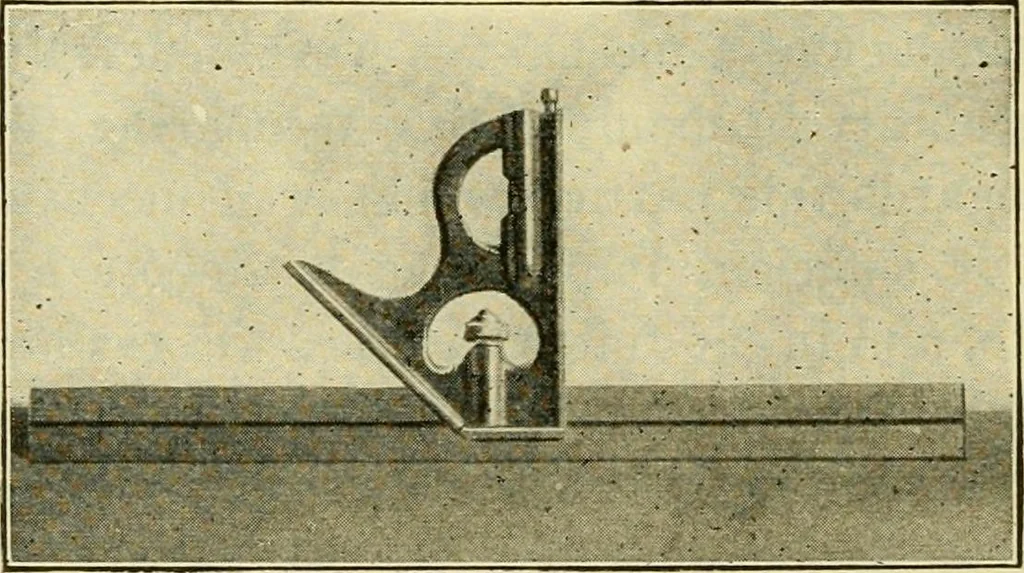

truments are manufactured inthis country that measure in millimeters, and for thisreason the inch and its parts alone will be considered inthis treatment. 1 1 1 1 111 W 6 Ml 1!8 le lllllll 1 1 lllll llllll 2 lllllll 3 lllllll lllllll Ihllll 4 lllllll III Fig. 93—Section of a small scale The scale… … Fig 94—An adjustable machinists square and level combined divisions engraved on a piece of steel. Scales are pro-curable from two inches to one foot in length. Thedivisions are marked ot¥ very accurately. A scale haseach of its four edges engraved. One edge is subdividedinto sixteenths of an inch;…
