Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 93

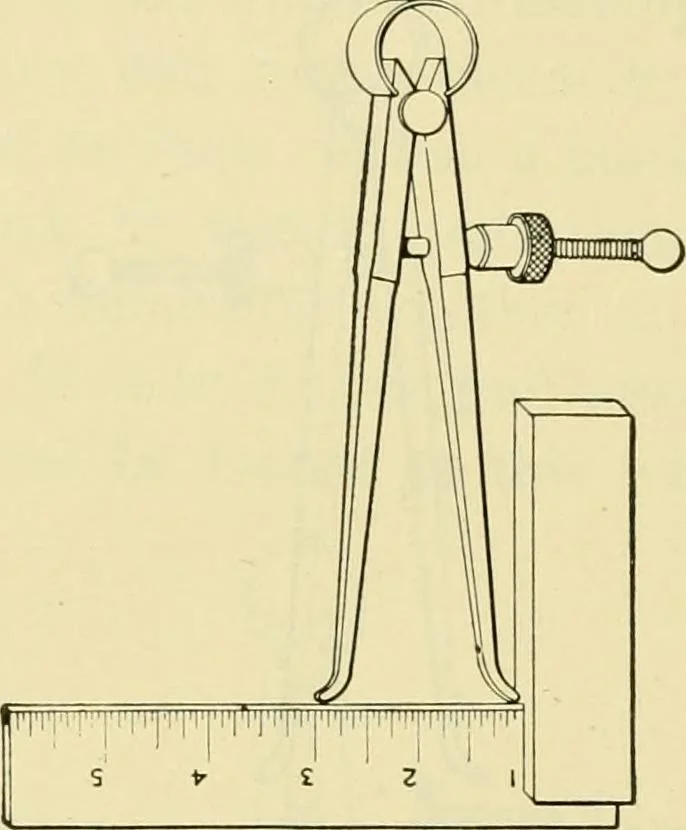

Fig. 102—How inside calipers are used 92 Shop Practice for Home Mechanics shown in Fig. 103. The calipers should never be forcedinside a cylinder or other piece of work, as this will causethem to spring. In using calipers they should be appliedto the work very lightly.What is known as a shoulder… … Fig. 103—How inside calipers are adjusted with a small square 104. Such calipers, however, will not be absolutely neces-sary as a scale can be conveniently used in their stead.
