Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 33

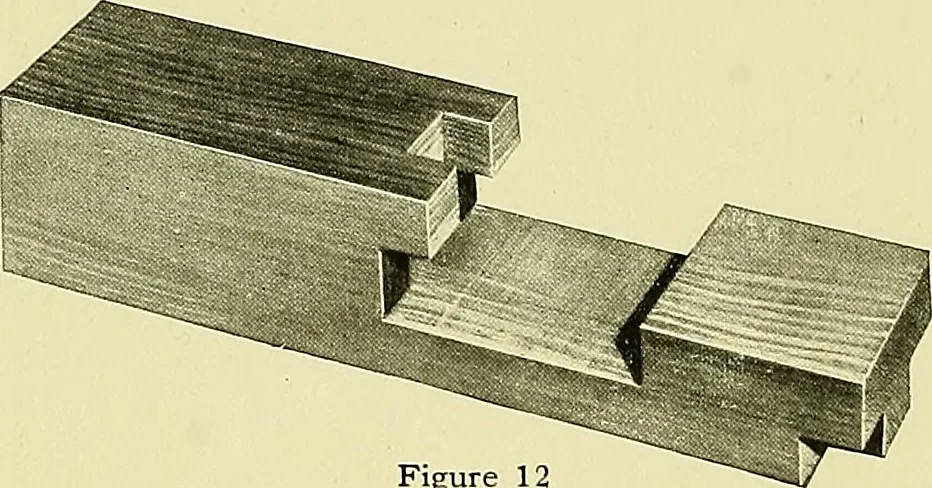

ec ti\/e: P/^ W re NO Plate 7 30 SHOP SKETCHING Note that when the angles of inclination are notthe same, the vanishing points ^vill be at difEerentdistances from the front corner of the object. Plate 8 This plate requires no orthographic. The prob-lem is to make a perspective from the working…
