Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 38

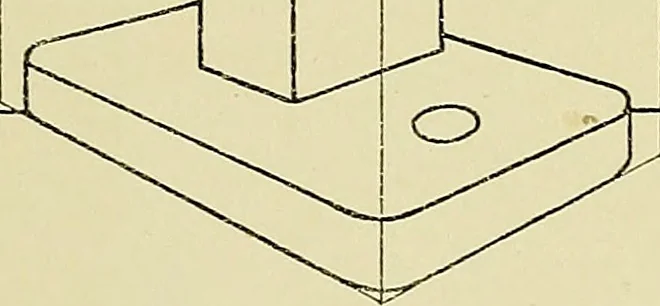

i^Li^TE NO.D^TE N£IME. Plate 10 36 SHOP SKETCHING Plate 11 This plate is a further application of the prin-ciples stated. Here more curved surfaces are given.Note that on a perspective, curves that are not sharp,such as filleted corners on a casting, can only be in- dicated with short, curved…
