Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 53

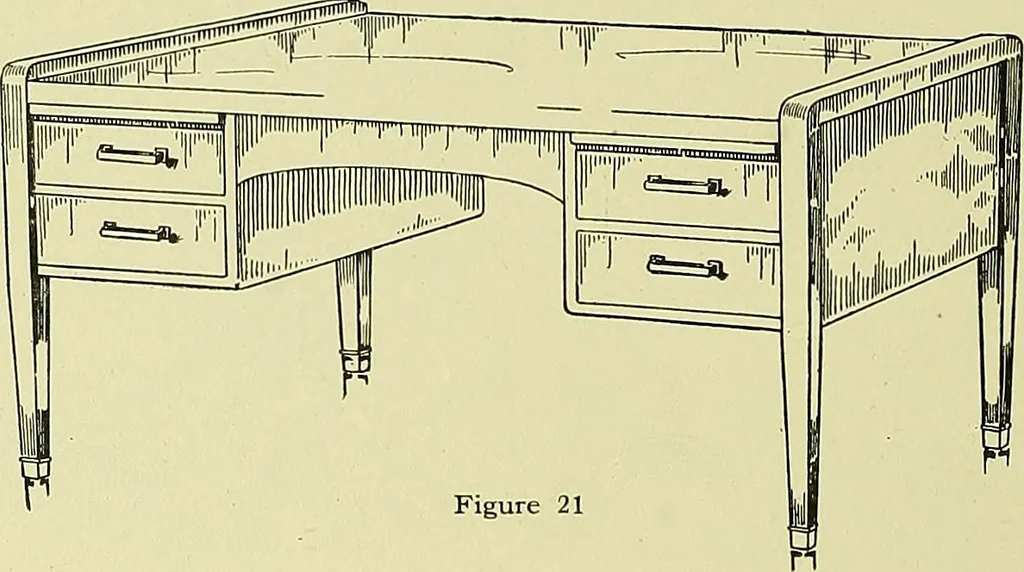

imension it. The cabinet shopprojects can be used as models, or the tables, benches,stools, cases, desks, chairs, etc., in the drawing roomcan be utilized. Each student should be assigned adifferent project as far as possible. Finish these perspectives carefully, using the 2 H pencil sharpenedto a… … PROBLEMS IN SKETCHING 51 Plate 19 From a rather small, complicated object suchas a valve, carburetor, etc., make a set of detailedorthographic sketches, and an assembly sketch. Thisluaj require more than one sheet. If so, number them Plates 19-A, 19-B, 19-C, etc. This problem is no more difficult…
Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
