Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 54

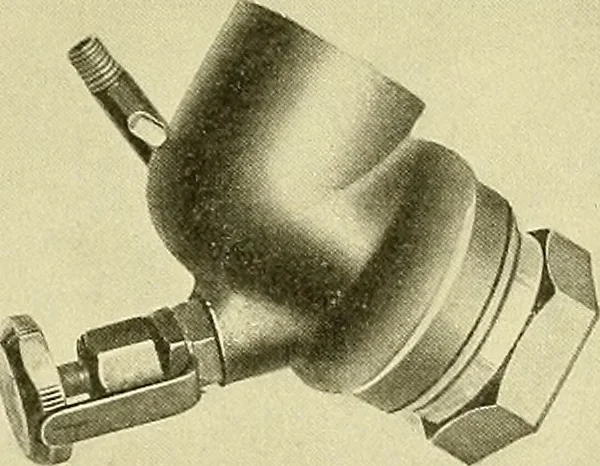

Figure 22 52 SHOP SKETCHING dimensions should be so carefully taken that the de-tailed parts will go together in the assembly with-out a conflict. Plate 20 This final plate of the sketching course is to bedrawn up from some machine—^a lathe, Figure 23,for example—a gas engine, or any large machine.…
Mechanical drawing
