A shorter course in woodworking; a practical manual for home and school (1911)
Wheeler, Charles G. (Charles Gardner), 1855-1946 · New York, London, G.P. Putnam's sons · leaf 153

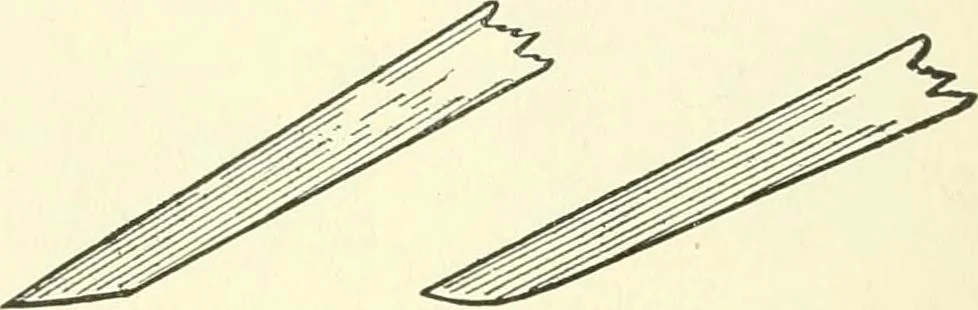

Fig. 355 130 A Shorter Course in Woodworking ii This wire-edge can be detected by pass-ing the thumb Hghtly over the edge (Fig. 355)- In rubbing the edge upon the oilstone(Fig. 356), do not attempt to smooththe whole bevel made by the grind-stone, but lay the tool lightly on the … Fig. 356 Fig- 357 Fig. 358 stone as in Fig. 354, a, and lift the handle until the upper part of the bevel is very slightly raised—barely enough to clear the stone{b, in Fig. 354),—the action ofthe oil will show when it has beenraised enough,—and then rub thetool back and forth very steadily,which…
Woodwork
