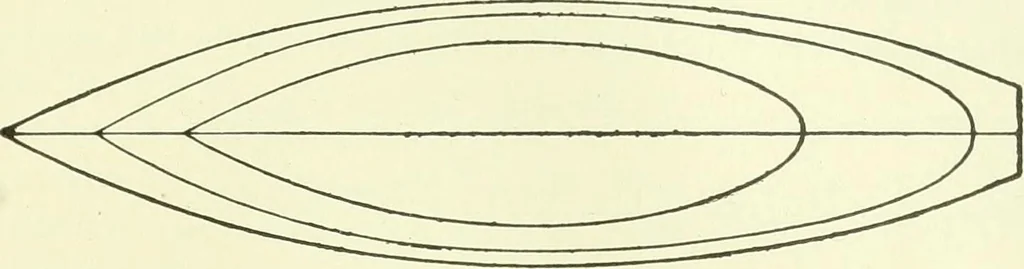

e. Straight-grained mahogany is good, butcostly for a large boat. Take, for example, a simple model of the fin-keel type (Fig. 675). Three views are usually drawn for a boat: the sheer plan, the body plan, and the half-breadth plan. These correspond to the front or side elevation, end elevation,… … To cut it from a solid block, square the block to dimensions, and draw uponthe sides the sheer plan, or side view (Fig. 676). To remove the wood tothis line with hand tools, either saw off most of the waste wood with thehand-saw(Fig. 677),and then trimto the linewith draw-shave, plane,chisel,…
