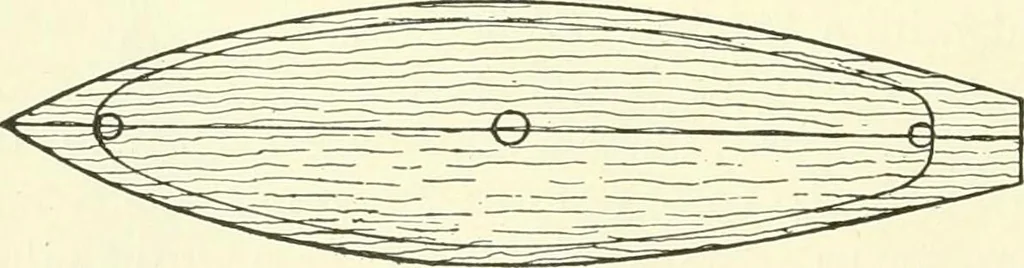

y by clamps or in some way, so that both hands can beused in cutting. Bore one or more holes (according to the size of the boat)downward from the top (Fig. 678), but leave at least Yi of wood belowthem. Run a groove with a small gouge inside of the line marked (Fig. 678),and hollow out the hull… … Fig. 678 Appendix 249 thicker than the rest, to stiffen the sides and give a bearing for nailing thedeck. Below this point, make the thickness of the sides as uniform as youcan, except that a thicker place can be left at the bottom where the keel isto be fastened (Fig. 679). One fourth of an inch…
