A short treatise on the designing and construction of gearing and mill-work. Accompanied by an explanation of the construction and use of the odontograph of Prof. Willis .. (1873)
[Scott, David] engineer. [from old catalog] · New York, D. Appleton and company · leaf 34

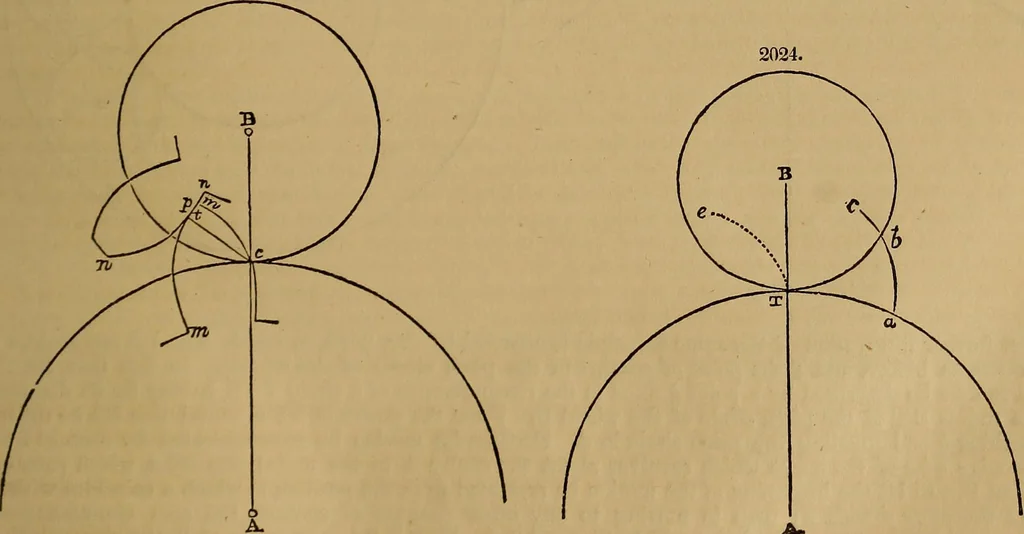

ngecast on one or both sides of the rim, of the same depth as the teeth, and binding these together likethe staves of a trundle. In this case the pinion is commonly the stronger wheel of the pair. In the construction of wheels, the problem which presents itself relative to the shape of the teeth… … Thufi, if we take Fig. 2023 to represent two teeth of a pair of wheels of which that marked A is thedriver; then it is plain that the faces of the teeth may be of such curvature in relation to each other,that as the circle A revolves and carries with it the circle B by then: mutual contact at C,…
Gearing · Mills and mill-work · Odontograph
