Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils (1920)
Stoller, Hugh Montgomery, Austin, F. E. (Frank Eugene), 1873-, Seeger, Edwin Wilbur, 1892- joint author, American Technical Society · Chicago, American Technical Society · leaf 164

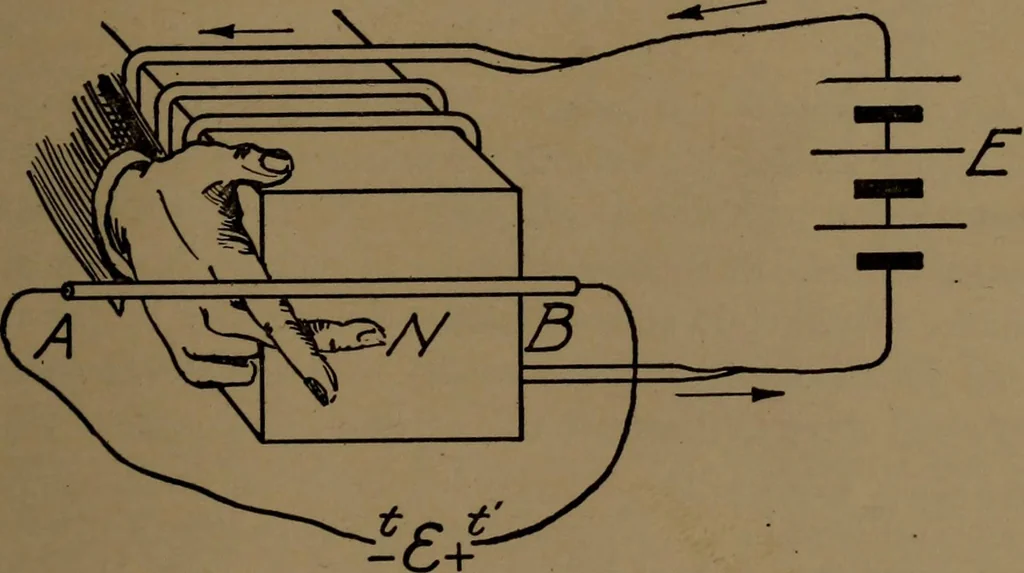

en in the follow-ing paragraph, an electric pressure having a direction from A toB will be induced in the moving slider AB. ■ Right=Hand Rule. The so-called right-hand rule should bevery thoroughly understood by any one who wishes to becomeproficient in the construction or operation of… … Fig. 4. Graphic Representation of Right-Hand Rule for Induced Currents place the hand in a magnetic field so that the forefinger points in thedirection of the magnetic lines and the thumb points in the directionin which an inductor is moved across the lines of force. The secondfinger will then…
Electric motors · Electric transformers · Electromagnets · Induction coils
