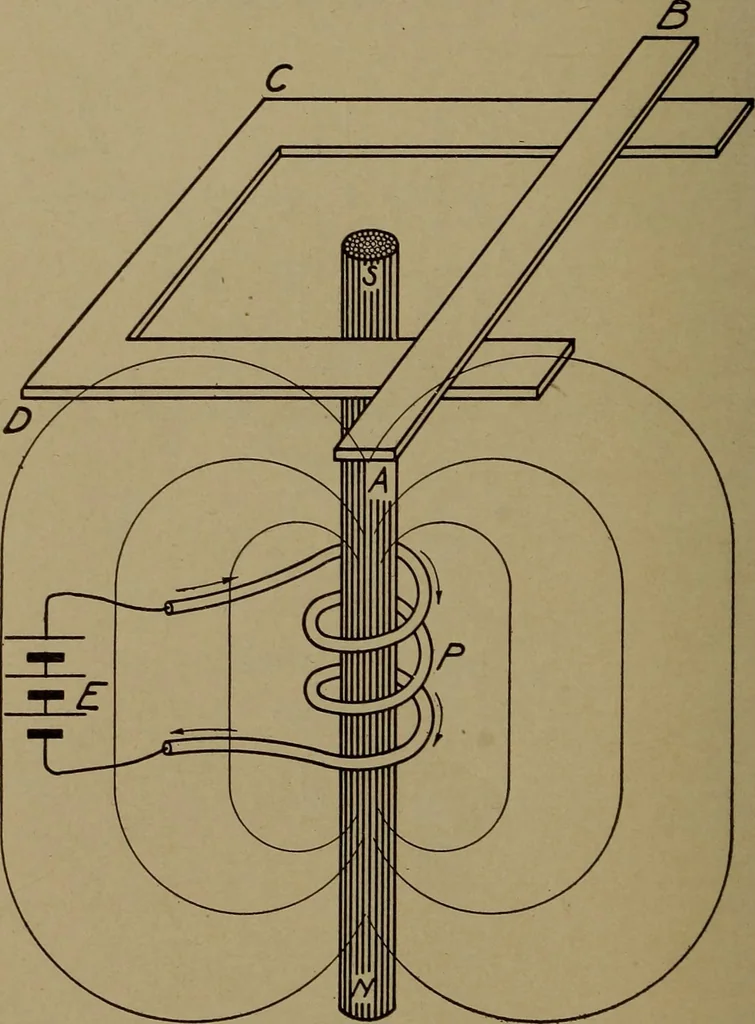

An illustration from Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils, 1920, leaf 175 — its which have beenexplained, to form an idealized transformer, Fig. 9. In this figure 161 18 DESIGN OF SMALL TRANSFORMERS NS denotes a round bundle of soft-iron wires forming the core ofa coil of three turns which has a current sent around it in aclockwise direction from a battery of cells denoted… … n Fig. 11. Lines of Force Produced by Primary Coil of Transformer number of magnetic lines thread downward through it. So longas the parts of the arrangement are stationary and the batterycurrent does not change in amount, there will he no current in thecircuit ABCD. Should the battery circuit be…
