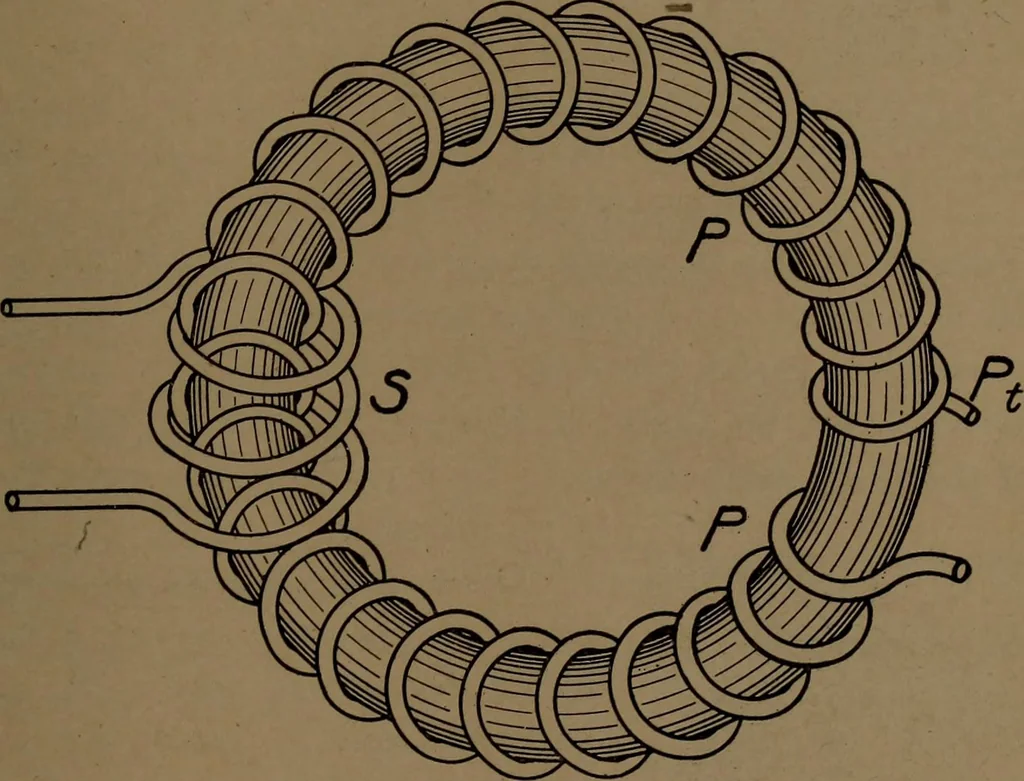

y opposite to the current in the coil surrounding thecore that produced the magnetic lines that threaded ABCD. Thecoil P surrounding the core NS may be designated as the pri-mary, and the circuit ABCD as the secondary, of a transformer inwhich the two electrical circuits are connected together, or… … Fig. 12. Principal Parts of Closed-Core Transformer P will increase in value, thus increasing the number of linesthreading through the secondary ABCD, and a counterclockwisecurrent will be produced in the closed secondary circuit denotedby ABCD. Magnetic Leakage. To one at all familiar with the…
