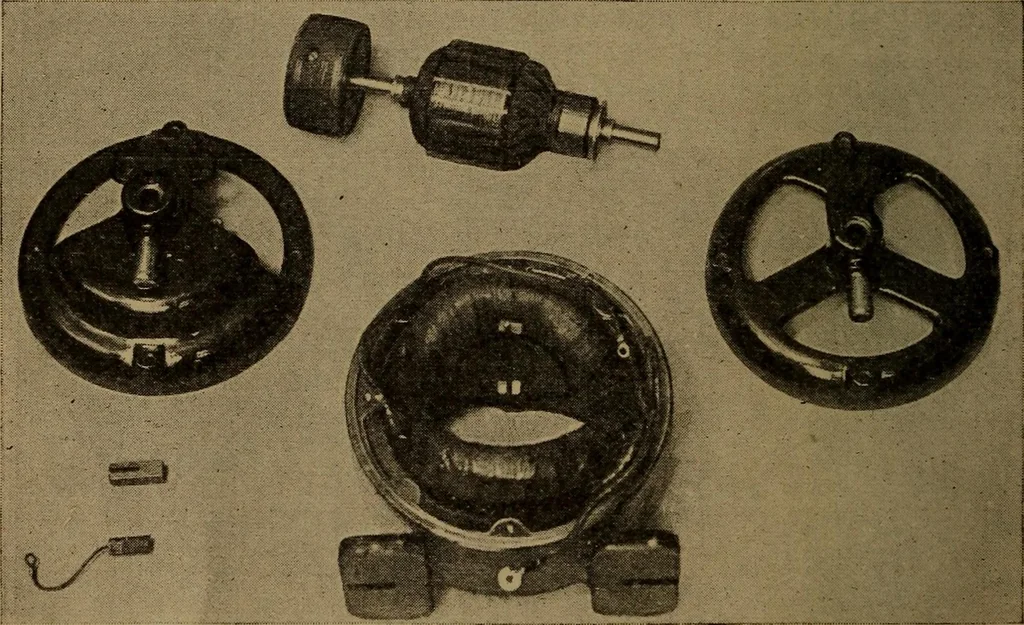

pitch is a favorite winding. After the winding is com-plete, the armature is treated with sterling varnish, bakelite, oiother compound which acts as a binder as well as a protectioragainst moisture. Commutator. Commutator construction is a feature whichhas been given considerable study, and several… … Fig. 4. Robbins &, Myers Direct-Current Motor, Frame 105, One-Fourth Horsepower, i . 1650R.P.M. II thickness. These are assembled around a steel core drilled to fitthe shaft and separated by micanite sheets. The entire com-mutator is then molded together with bakelite and turned true.Another…
