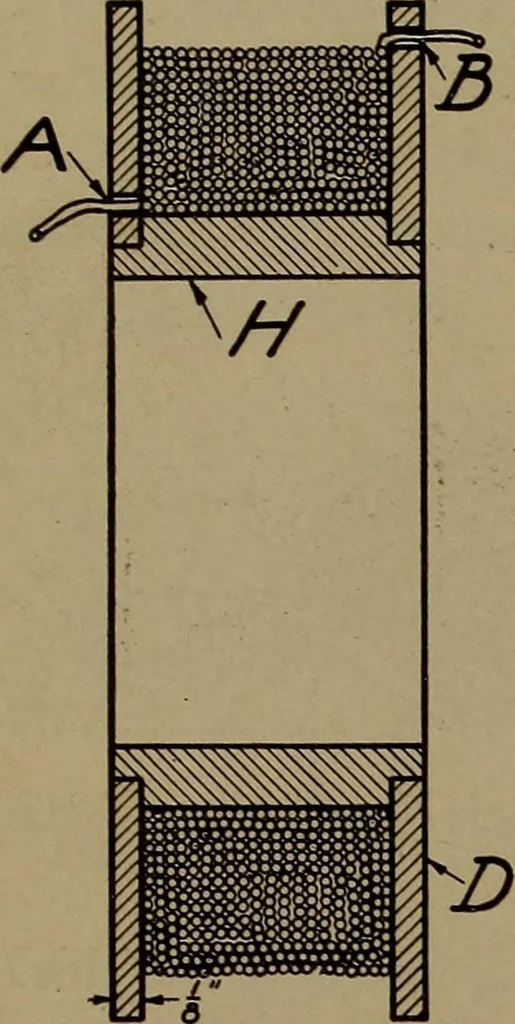

An illustration from Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils, 1920, leaf 201 — method of connectionis to prevent an excessive pressure between any adjacent layers orturns; the terminals of each coil are as far from each other as pos-sible by this arrangement. Insulating Coils. The question of insulation is a very impor-tant one in the design and the operation of transformers.… … SECT/O/V £-E
