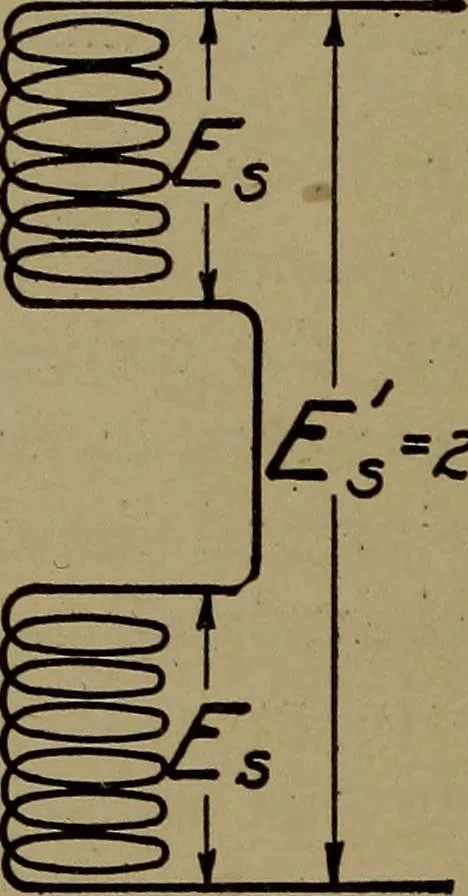

An illustration from Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils, 1920, leaf 203 — of the oil when desired. Sucha container is illustrated and more fully described on p. 87. MISCELLANEOUS DETAILSConnecting Coils for Different Pressures. If two transform-ers like the one just described be connected as shown in Fig. 33,having their primaries Ep connected in parallel across the… … Ss^^O.OOO VOlTsS Fig. 33. Transformers Connected in Series ary terminals are connected together. The two secondaries haverelative positive and negative terminal polarity, so that if incor-rectly connected together, the net secondary pressure might bezero. This may be tested by inserting a very…
