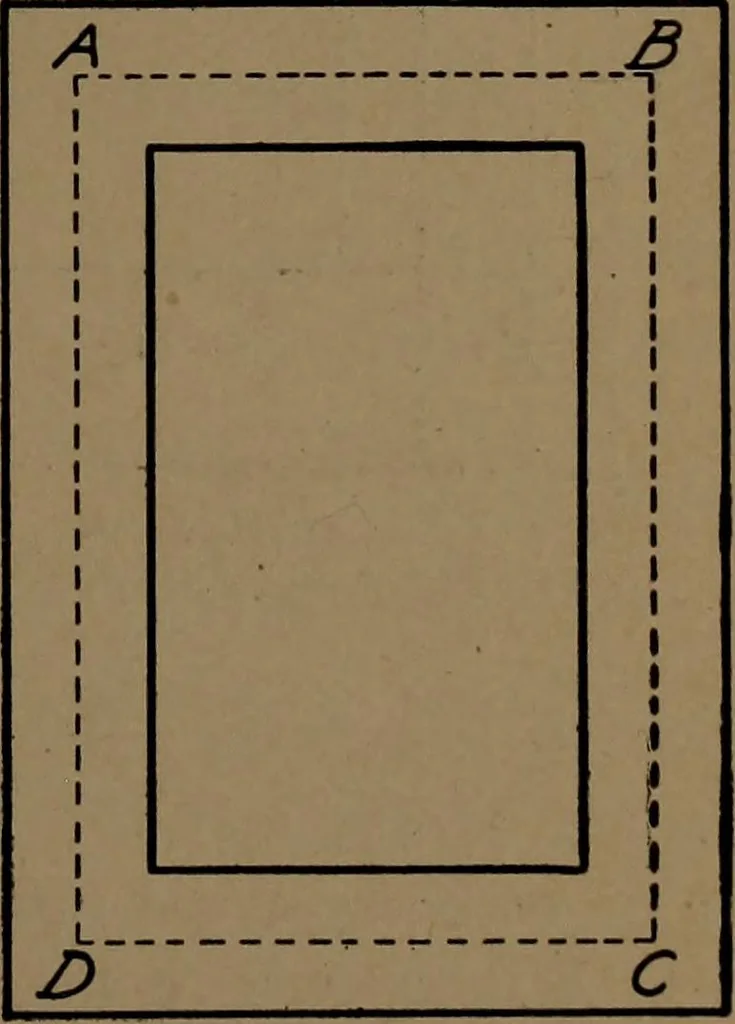

e longerstrips EF and AB will be 21 inches long,as they correspond to the distance he.The core is built up to the desired thick-ness by the proper number of platesplaced one above another, so placed as Fig.s?.to *break joints, or to lap one anotherat the corners. If the first layer is arranged as… … Diagram Showing MeanLength of Transformer Core 205 62 DESIGN OF SMALL TRANSFORMERS Width and Depth of Core. If the cross-section of the iron coreis to be square, the width and the depth of the section will be thesame, and if the cross-sectional area of the core is 13.76 squareinches, the width and…
