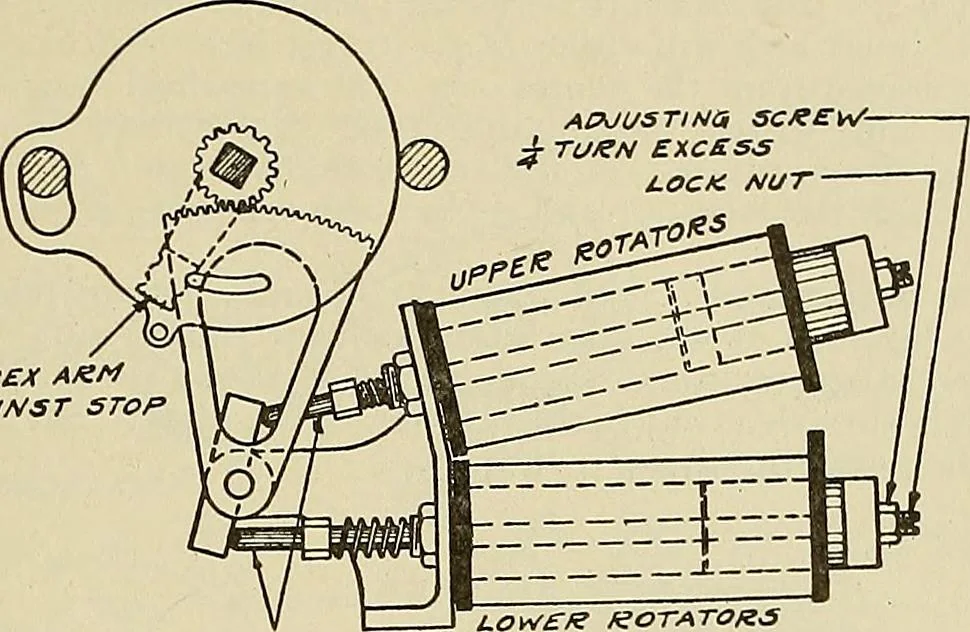

elect theletter J combination. Loosen the lock nut on the lower rotator magnet, which will notbe operated, and turn the adjusting screw counter-clockwise. This will shorten the travelof the magnet plunger and move the typewheel slightly, taking the J out of the printingposition. Now turn the… … /NP£X AKfilAGAINST STOP LOWe/S ROTATORSROTATOR PLUNGE/? /SOPS Fig. 40 off the adjusting screw and coming up slowly to the stopping point in order to determinethe exact position. When the position is determined give the adjusting screw a quarterturn additional and tighten the lock nut. The same…
