Specifications for the multiplex printing telegraph system : theory and operation (1920)
Western Union Telegraph Company · [New York?] : The Company · leaf 191

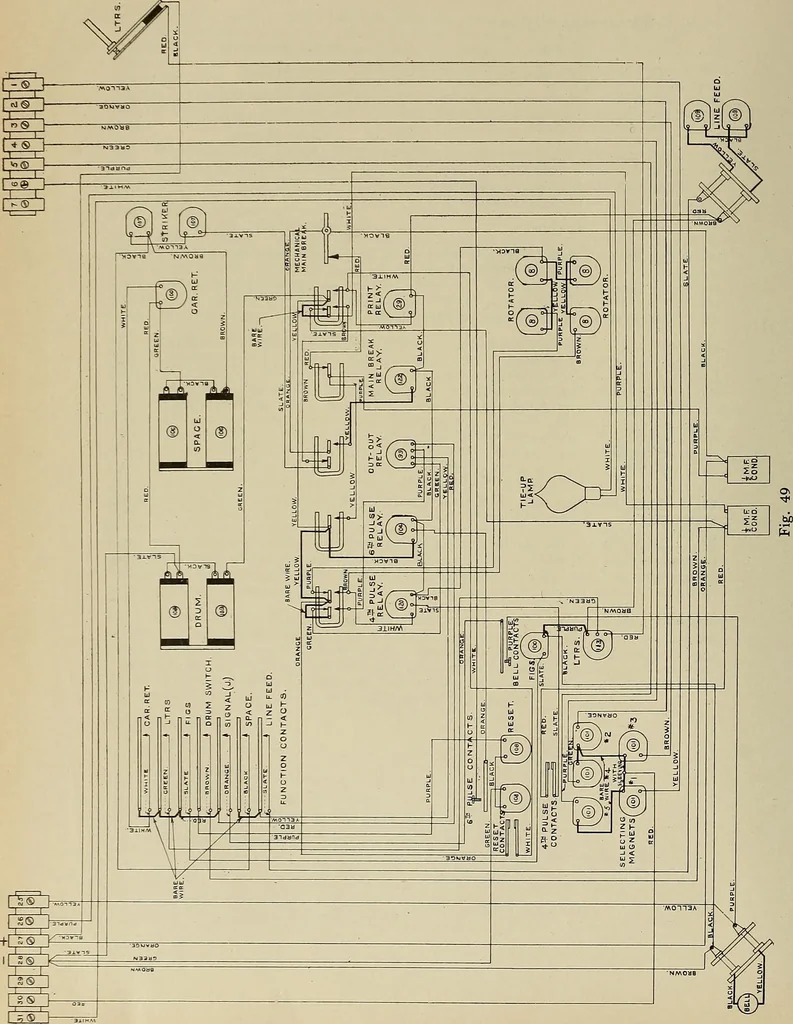

pewheel rotation letters normally letters nearest platen 51. Wiring Diagram. A complete actual wiring diagram of the printer is shown inFigure 49. 52. Cable Form. For convenience in wiring printers in which the cable form mustbe replaced Figure 50, which shows the cable form, and Figure 51, which… … Page 19 Section 5-A Adjustments Multiplex System 263-C
Telegraph
