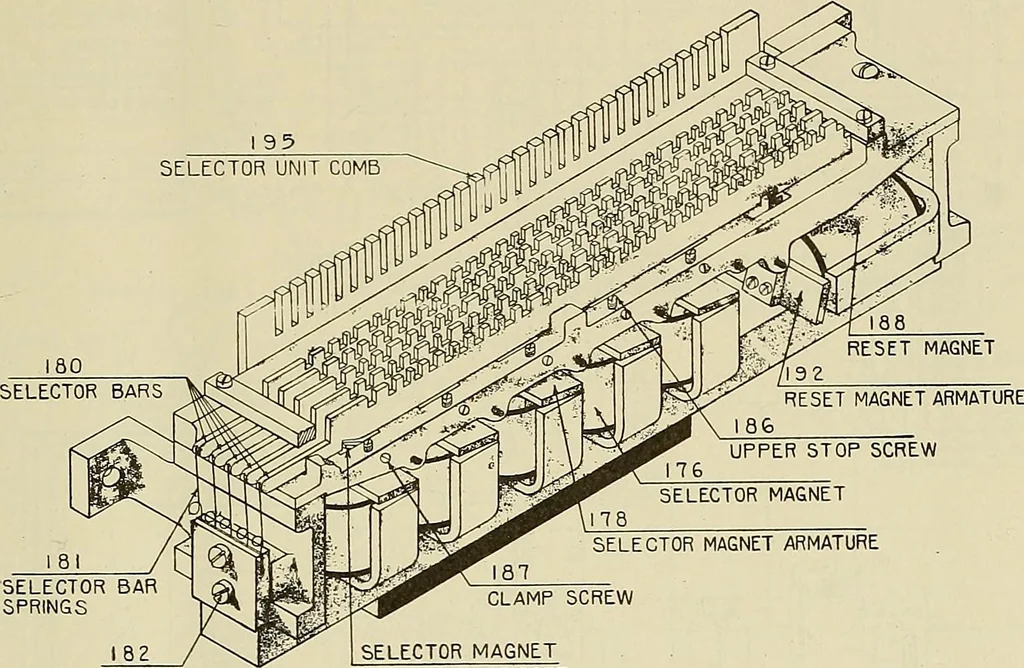

actical and in the 3-A Printer which is described in this sectionthe selecting and printing units have been consolidated into a single machine. Thisprinter mechanically performs the greater part of its function and the printing is doneby type bars. For the sake of convenience part of the relays,… … ARMATURE TRIGGERFig. 2 2. Figure 2 shows the complete selector unit in perspective. It consists principallyof five selector magnets with their armatures, five selector bars, the selector bar springs,a reset magnet and a selector unit comb. The five selector bars are normally held towardthe left of…
