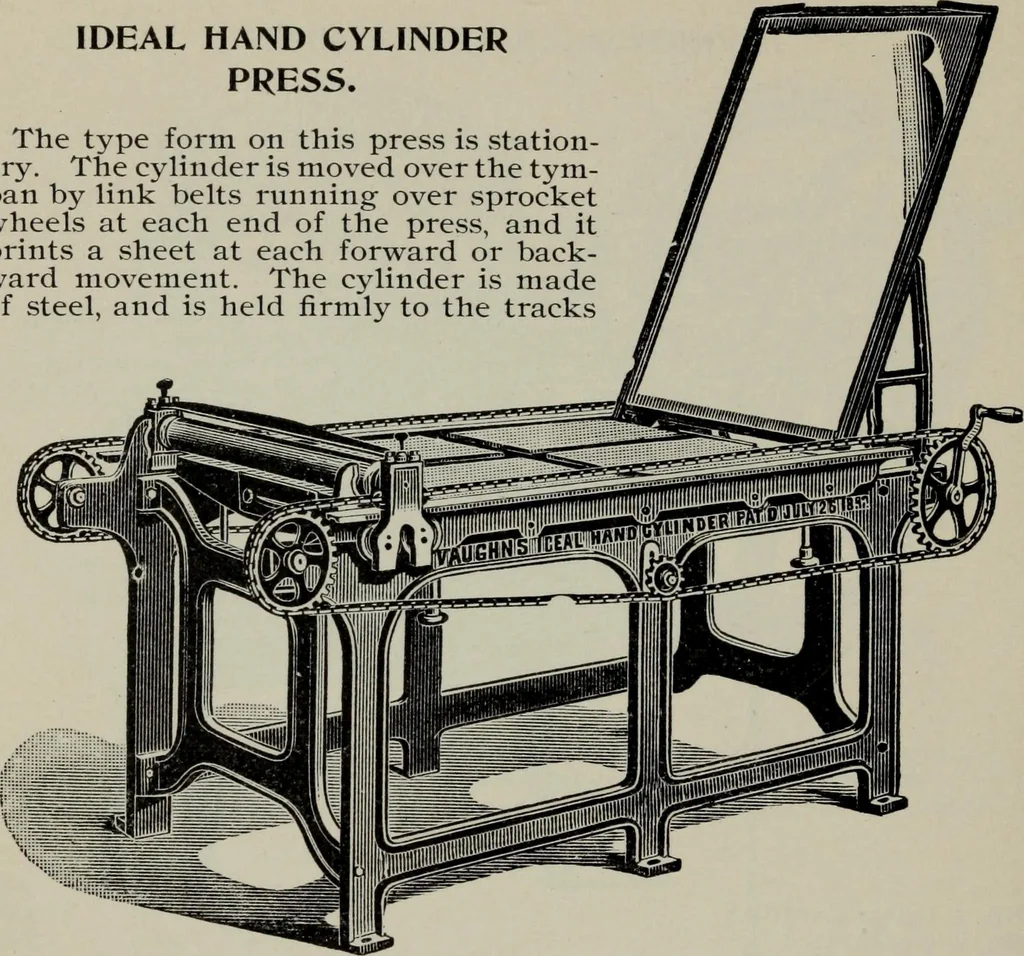

AMERICAN TYPE FOUNDERS CO. IDEAL HAND CYLINDERPRESS. The type form on this press is station-ary. The cylinder is moved over the tym-pan by link belts running over sprocketMrheels at each end of the press, and itprints a sheet at each forward or back-ward movement. The cylinder is madeof steel, and… … by truck-wheels which run in a groove on the under side of the tracks.The boxes which hold the cylinder at each end, and in which it re-volves, are connected by a stretcher rod running above the cylinder,which prevents side friction. The impression is regulated by fourscrews—two on each side—which…
