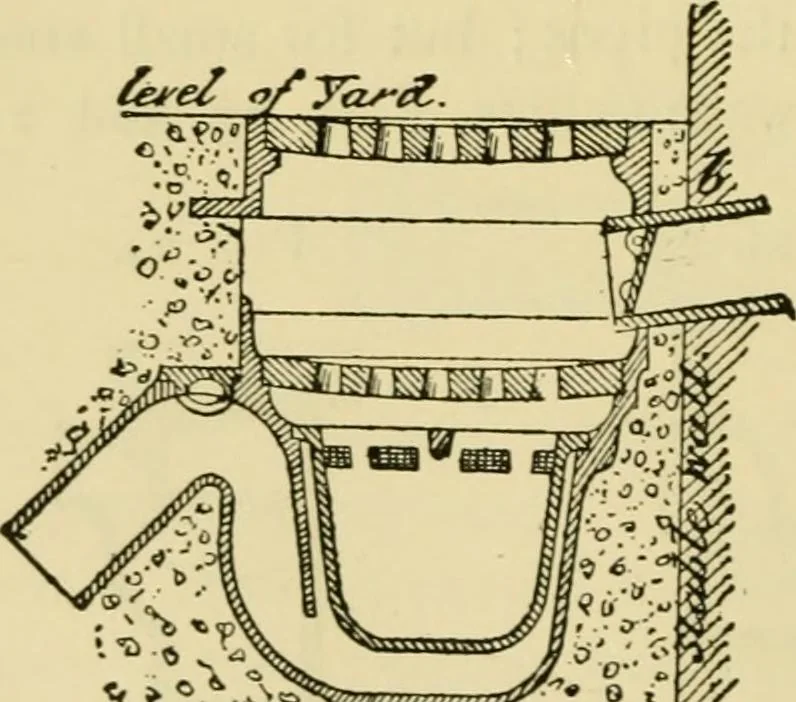

from it.The syphon trap illustratedin Fig. 2 6a is another exampleof improved stable drainagewhen used in connection withthe gutter shown in Fig. 19A.The latter passes through thestable wall at h^ dispensing withhorse and mare pots and all■^\^>i>?:\^X^is--^^ underground dramage m the… … DRAINAGE. 47 back, as shown by the dotted Hnes. The ordinary size measures8 inches square on the outside at the top, but they can be alsoobtained in other sizes, and fitted either with iron gratingsor perforated earthenware covers. Plates ^$, 34, and 35, illustrate the covered drainage of Drainage…
