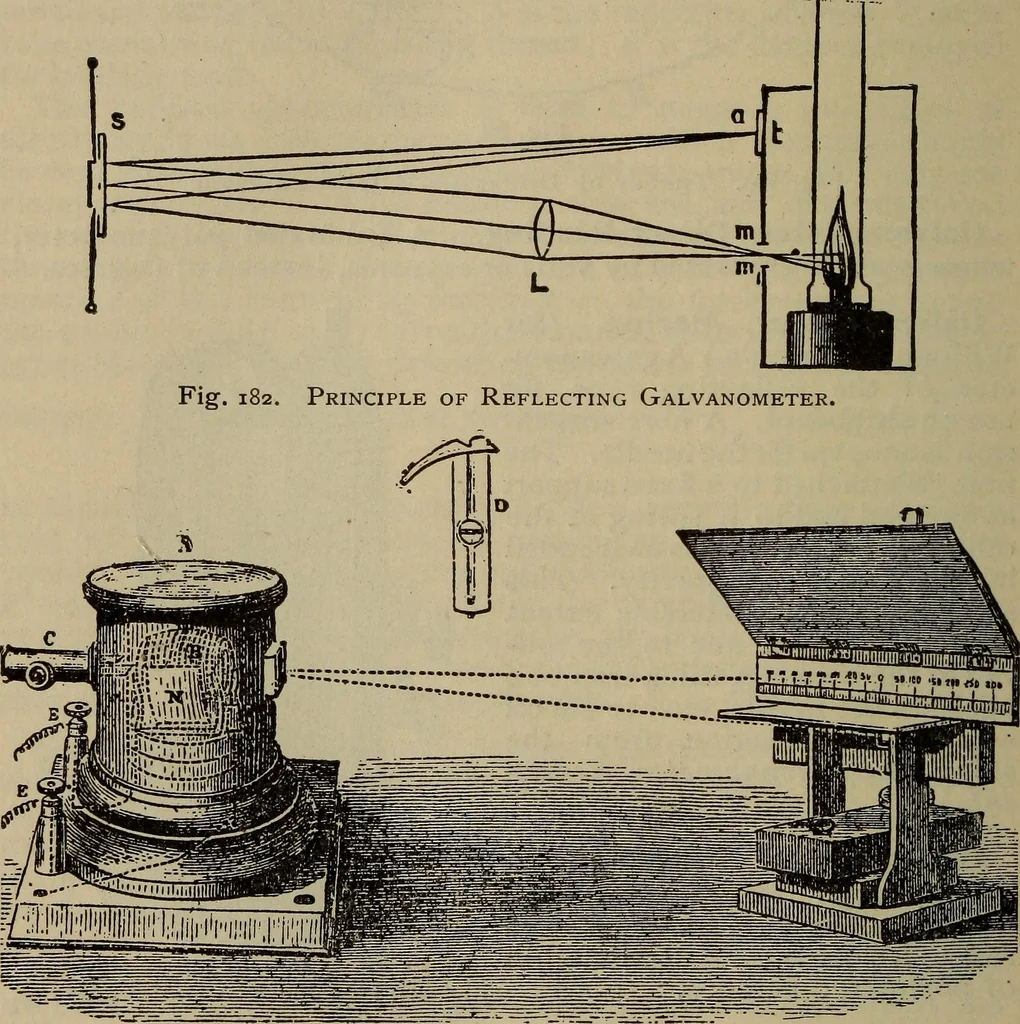

270 STANDARD ELECTRICAL DICTIONARY. quantities of electricity, by the deflections produced by dischargingthe quantities through their coils. It is a ballistic galvanometerwith very little or no damping. Galvanometer, Reflecting. A galvanometer the deflections ofwhose needle are read by an image… … Fig. 183. Reflecting Galvanometer. a mirror attached to the needle or to a vertical wire carrying theneedle. A lamp is placed in front of the instrument facing themirror. The light of the lamp is reflected by the mirror upon ahorizontal scale above the lamp. An image of a slit or of a wiremay be…
