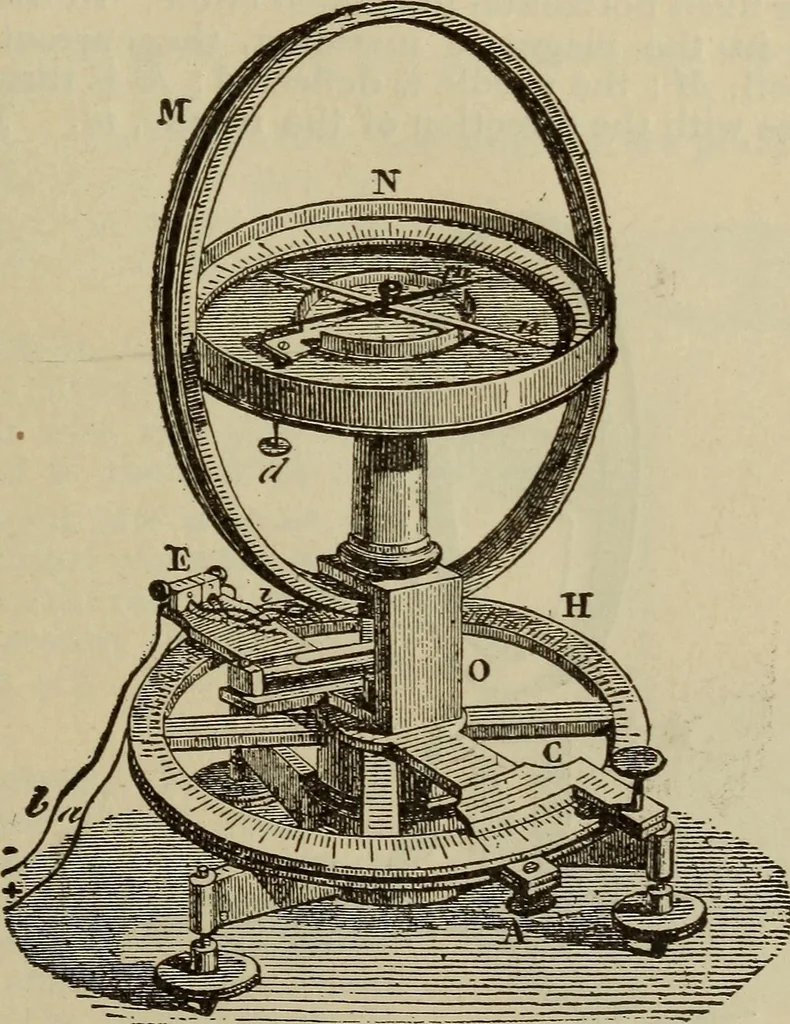

be shown distinctly upon the scale. In the cut, Fig. 182, the ray of light from the lamp passesthrough the aperture, m m, and is made parallel by the lens, L.At 5 is the mirror attached to the needle and moving with it. Ascale placed at t receives the reflection from the mirror. The cut,Fig. 183,… … Fig. 184. Sine Galvanometer. is sometimes placed in parallel with it. The total current will be distributed between galvanometer and shunt in the inverse ratio of their respective resistances. (See Multiplying Power of a Shunt.) Galvanometer, Sine. A galvanometer whose measurements 272 STANDARD…
