The standard electrical dictionary; a popular dictionary of words, terms, and phrases, used in the practice of electrical engineering (1897)
Sloane, T. O'Conor (Thomas O'Conor), 1851-1940 · New York, H. W. Henley & co. · leaf 458

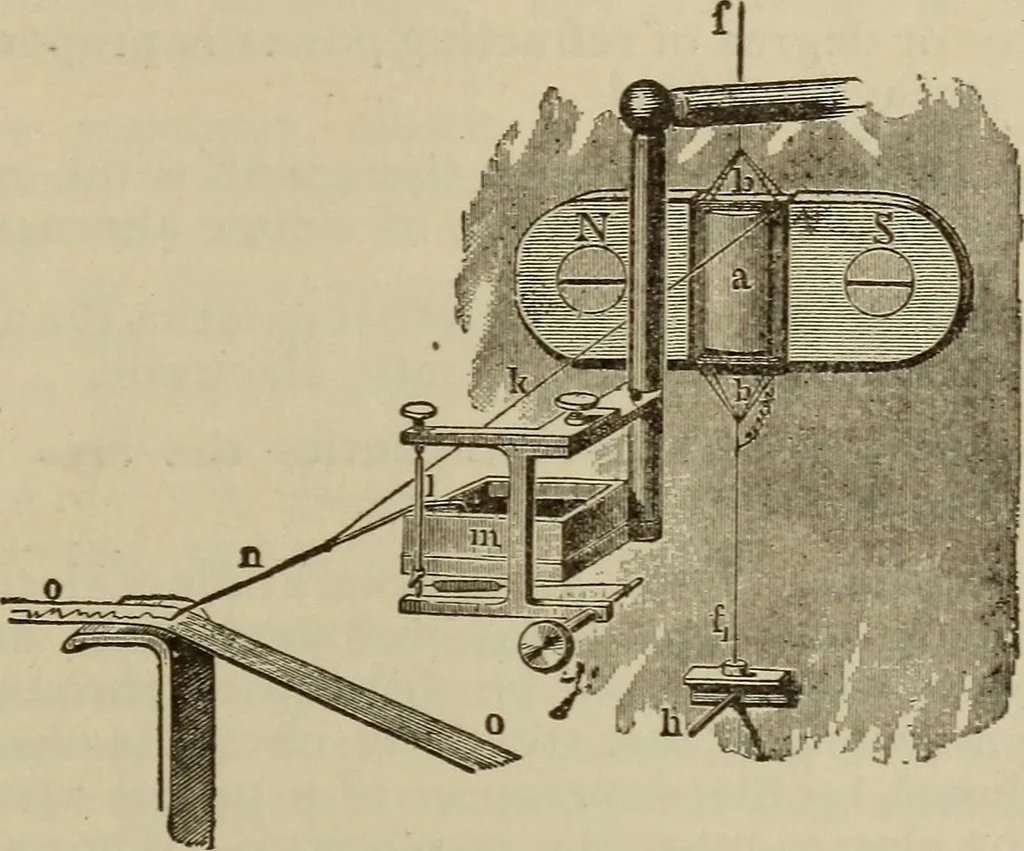

r for STANDARD ELECTRICAL DICTIONARY. 453 the current. The current is sent in one or the other direction oris cut off in practice to produce the desired oscillations of the coilb b. A glass siphon n I works upon a vertical axis /. One end / isimmersed in an ink well m. Its longer end n touches a… … Fig. Siphon Recorder. hand-screw controls the siphon. In operation the siphon is drawnback and forth producing a zigzag line. The upward marks repre-sent dots, the downward ones dashes. Thus the Telegraphic Codecan be transmitted on it. To cause the ink to issue properly,electrification by a static…
Electricity
