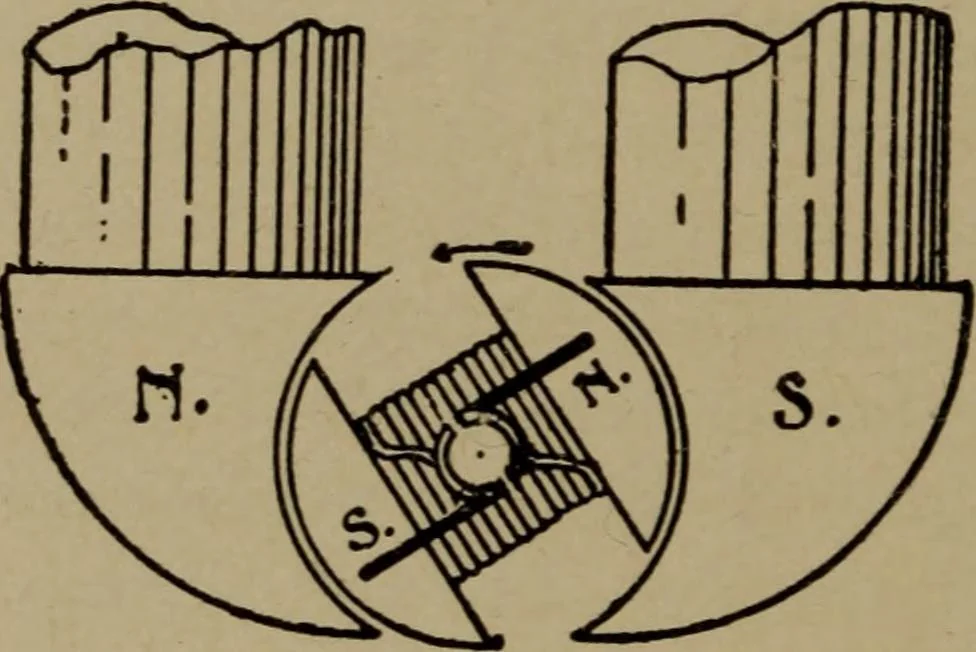

indicating direction of current, as -|- is current enter-ing and — current leaving. The field magnets are shown marked N and S. Thenorth pole N attracts the magnet of the south pole ofthe armature S, and the south pole S of the magnetattracts the north pole N, of the armature. For thisreason motion… … FIGURE 34.—KLECTRIC MOTOR. a position where the segment which had previously beenin contact with the + brush, has now moved so as to bein contact with the — brush, and the opposite segment isnow in contact with the + brush. This must reverse the current in the armature and alsothe magnetism and the…
