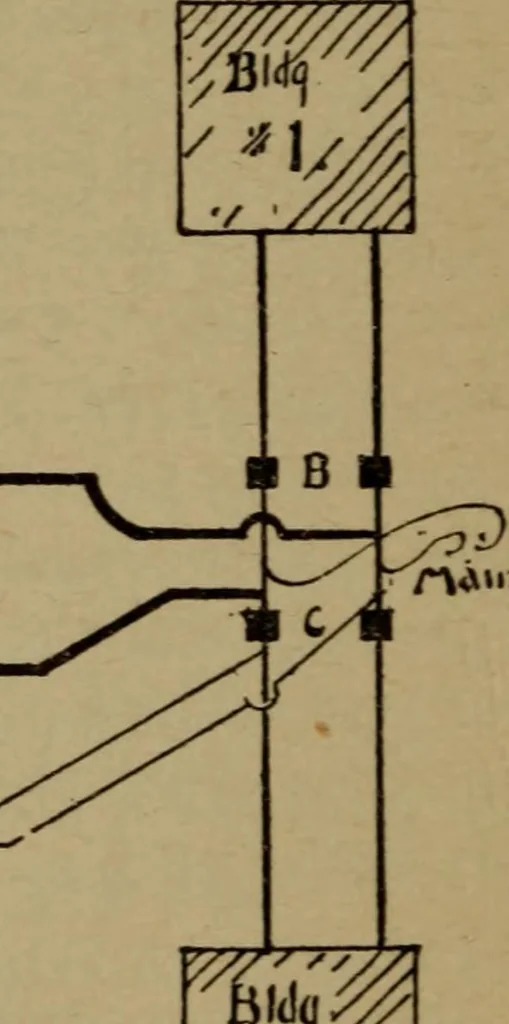

t a practical case be taken. I^et the 48 CURRENT DISTRIBUTION, dynamo D, figure 19, designed to furnish a constantpotential current, be connected by wires to 100 incandescent lamps in each of two buildings, 1000 feet distant*The incandescent lamps are to be made to give 16 c. p atJIG volts… … n«!i»A« FIGURE 19.—PI.AN OF CURRENT DISTRIBUTION SHOWINGFEEDERS, MAINS AND PRESSURE WIRES. When the buildings are reached, the wiring then con-sists of mains and the service wires, or tap circuitsfrom the mains on which the incandescent lamps areplaced. Thus the distributing system of such an…
