Lockyer, Norman, Sir, 1836-1920, Seabroke, G. M. (George Mitchell), 1848-1918 · London, Macmillan and co. · leaf 312

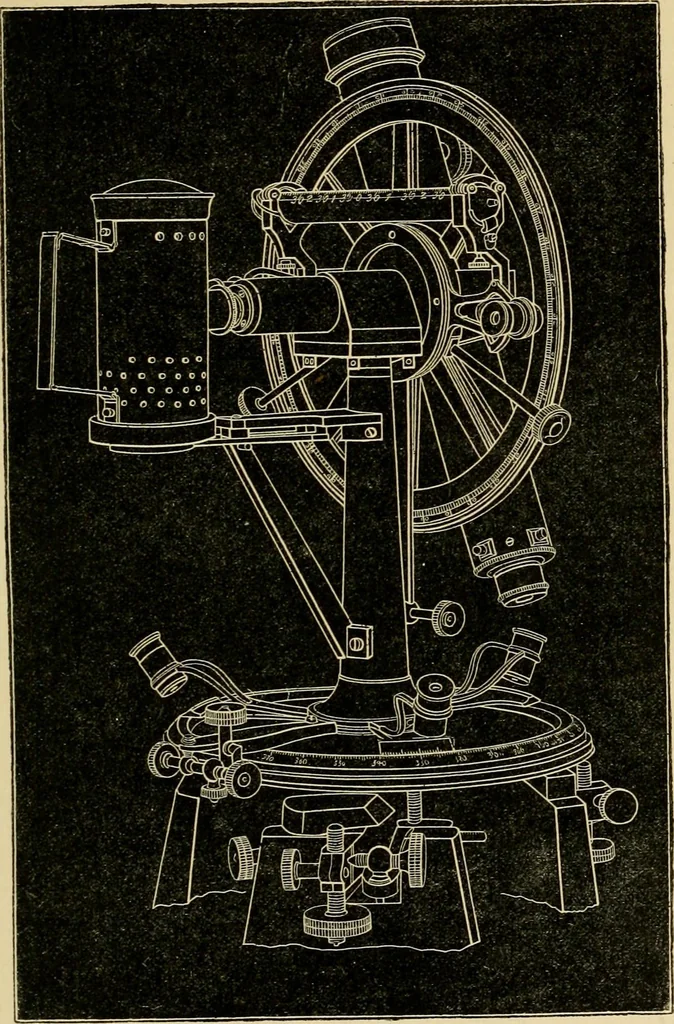

Fig. 132.—Theodolite. If we refer again to Fig. 18, we see the method bywhich Tycho tried to get the two co-ordinates. On thehorizontal circle there are the graduations for azimuth,or the measurement from the south along the horizon,and on the vertical quadrant are the graduations for eijAP. XIX.]… … Fk;. 133.—Portable Alt-azimutli. The upper part of the instrument is, as one sees, nothingmore tlian a transit circle exactly equivalent to the one u 290 STARGAZING r PAST AND PRESENT. [book iv. described. We have a telescope carried on a horizontalaxis, supported by a pillar; we have the reading…
