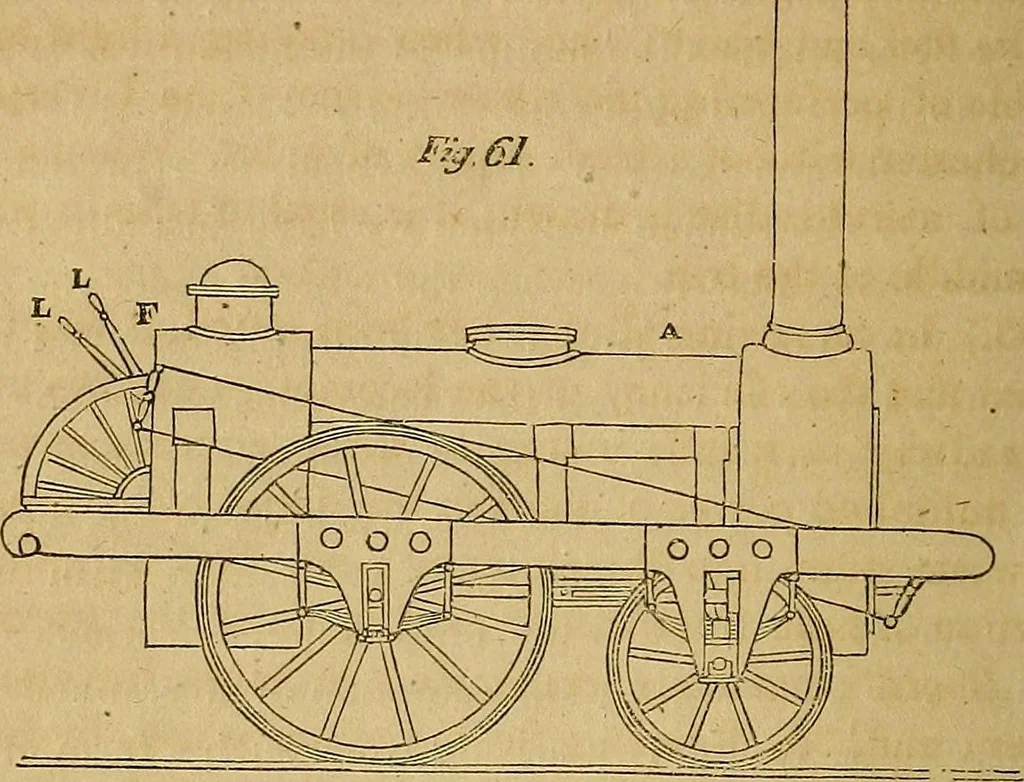

eam whichhas worked the pistons through a contracted orifice, pre-sented upwards in the chimney, by the regulation of whichany degree of draft may be obtained. One of the most improved engines at present in use is re-presented in fig. 61. a represents the cylindrical boiler, the lower half of… … ber is attached to one end of it, at f, as in the Rocket, andsimilar in construction ; the cylinders are inserted in a cham-ber at the other end, immediately under the chimney. Thepiston-rods are supported in the horizontal position byguides; and connecting rods extend from them, under theengine,…
