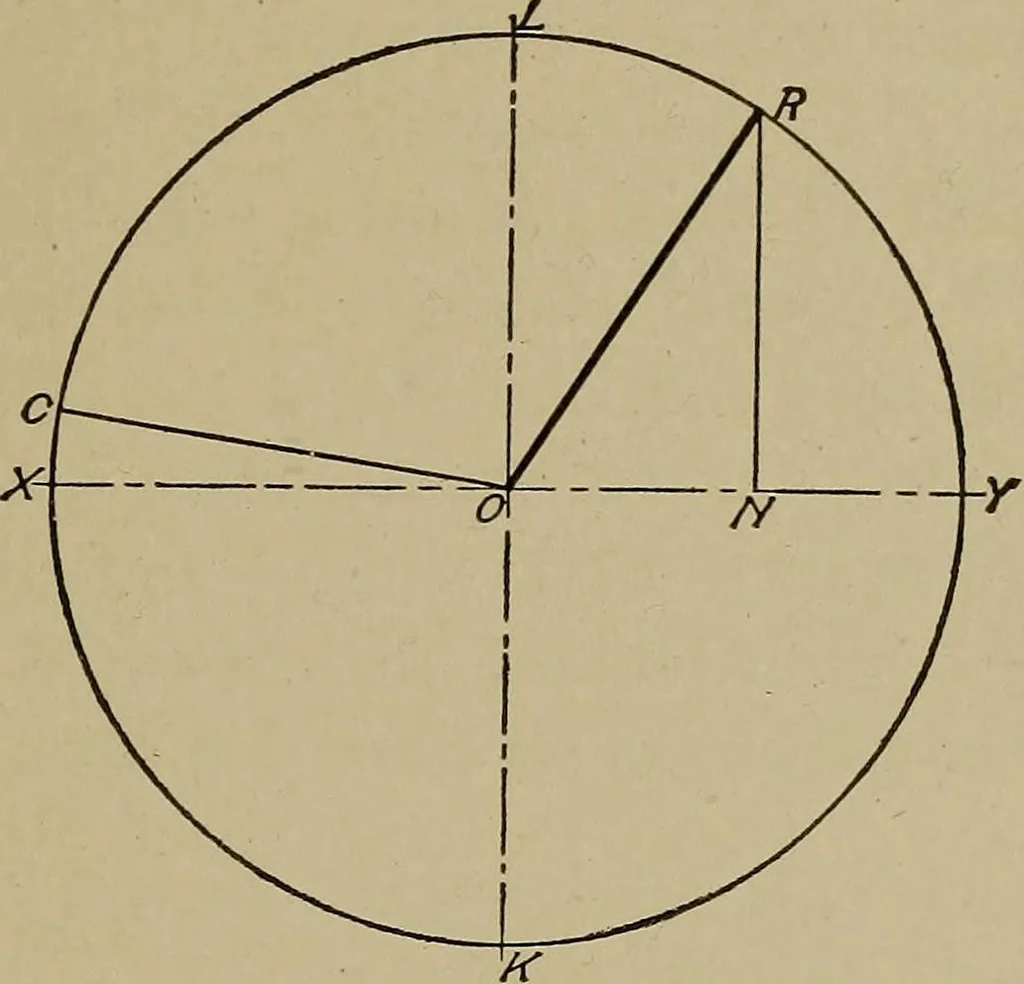

acement could be found in the same manner. To Find Displacement of Piston. To find the displacement ofthe piston, a diagram as shown in Fig. 17 must be drawn. In thisfigure, A B represents the cylinder, Pi the piston, Hx the crosshead,IIiR the connecting rod, and 0 R the crank. Suppose now the… … Fig. 16 Eccentric Circle Showing RelativePositions of Crank and Eccentric 1 \ 1 p, % ii 4 /£ 1 i
