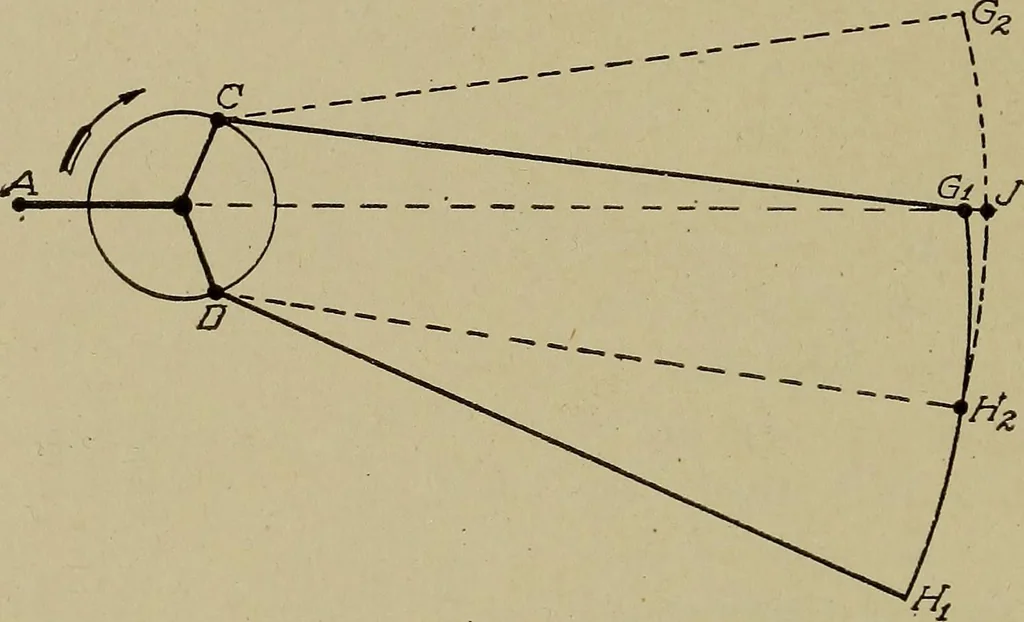

position would be in full gear backward. From the foregoing, it is obvious that the Stephenson gear maybe divided into three distinct mechanisms, each of which perform adefinite function. First, the link motion proper, comprising theparts from the axle to the link; second, the adjusting gear, which… … Fig. 53. Open Rod Arrangement of Eccentric Rods in Stephenson Gear perhaps, the most important of the three, at least for the presentstudy. Remembering that the link supplanted the gab-hook, itshould be obvious that the eccentric rods and their connection tothe link form a combination similar in…
