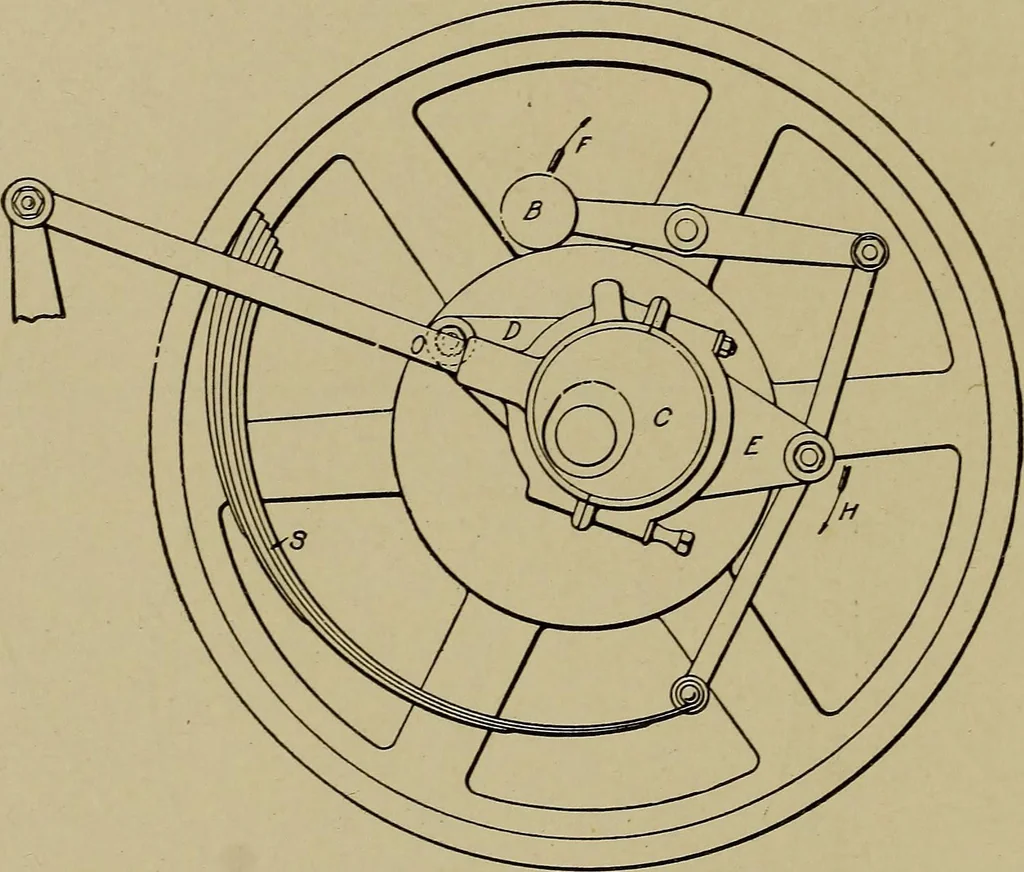

linder port should be 1J incheswide and the valve port 1 inch wide. Fig. 67 shows this valve laidout to scale, but as this process is in all respects similar to thatdescribed for laying out a plain slide valve, it will not be describedin detail. Shifting Eccentric Valve Gear. In addition to the… … Fig. 71. Diagram Showing Action of Straight-Line Type of Shaft Governor eccentric gear. The valve itself is the ordinary flat slide or pistonvalve, and the valve stem, eccentric rod, and eccentric are the sameas used in the common arrangement. The difference between thefixed and the shifting…
