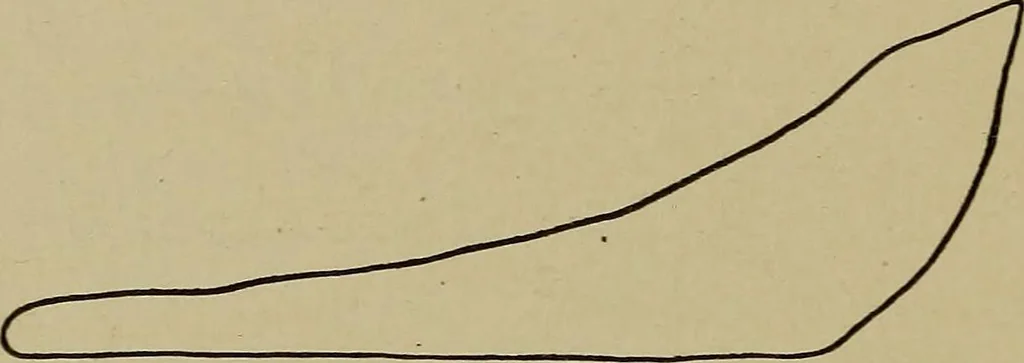

ine, running at 200r.p.m. and with a load slightly under full load. Fig. 54 illustratesanother card taken from the same engine operating under a very lightload. The c.o. occurs very early. The small area of the card sug-gests the small amount of work being done in the cylinder. 70 STEAM ENGINE… … Fig. 52. Card from Buckeye Engine at Low Speed of the cylinder, the distortion becomes very apparent. Fig. 56illustrates a distorted card from the same engine, its distortion beingdue to the cord slipping off from the sector of the reducing motion.
