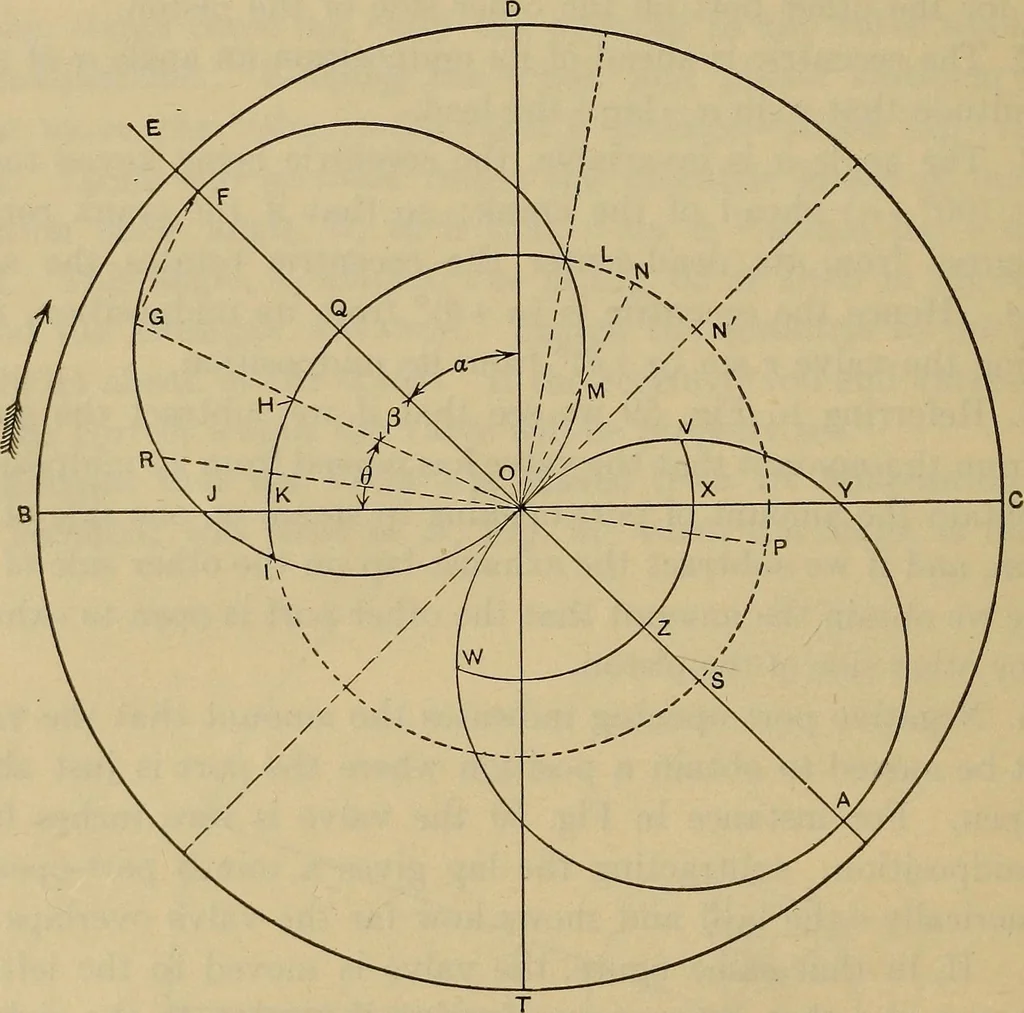

of room for the steam that is ex-hausting from either the right or left port. 7. The engine and diagram must not be confused. In theengine, when the crank moves, the eccentric and valve also move.Once the diagram is constructed the only movable quantity is aline representing the crank, the rest of… … Fig. 68.—Zeuner Diagram. necting-rod to be to the left. In the diagram lay off the angularadvance, a, negatively. On OE thus obtained lay off 0i^= thethrow of the eccentric. On OF as a diameter construct a circle.Let the crank rotate through any angle, d, from its dead-center VALVE-DIAGRAMS AND…
