Creighton, William Henry Paul, 1859- · New York, J. Wiley & sons; [etc., etc.] · leaf 352

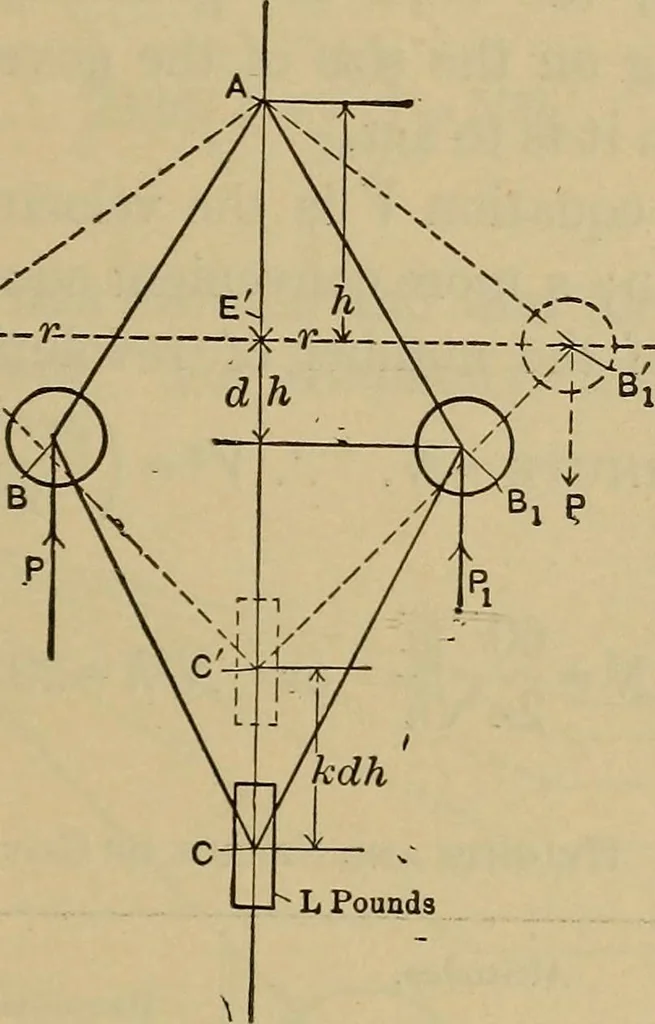

exerted vertically atB and Bx, let the linkage attain the dotted position. Either analyt- REVOLUTION CONTROL. 331 ically or graphically it will be found that if the balls B, Bi movethrough a small vertical height (dh), the heavy weight L will movea greater height, k(dh). The work put in must equal… … *F. Fig. 170. Let the mechanism shown be that of a loadsd high-speedgovernor. Let centrifugal force F, acting along EB and EBifkeep the balls in the dotted position shown. Then, for the reasonsabove given, we have, taking moments around A, Pr = Fh, or / kL\ wV21\ 2 / gr This equation contains…
Steam-engines · Heat-engines
