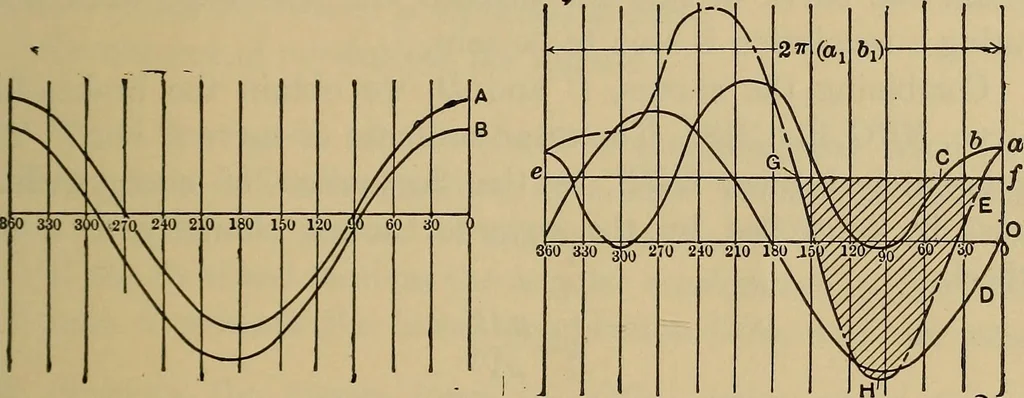

tating parts. As work is theproduct of a mean pressure and the distance through which thatmean pressure is exerted, it remains to show the distance throughwhich the force in the eccentric-rod and the weight of the rotatingparts is exerted. Work of Eccentric-rod Forces about the Spindle… … Fig. 217. Fig. 218. ao acting normally to a radius, aj)i. Note that the forces andtheir normal components in the figure are drawn at the spindlecenters instead of the eccentric centers to avoid confusion oflines. By taking all the pressures normal to the line joining theeccentric and spindle…
