Creighton, William Henry Paul, 1859- · New York, J. Wiley & sons; [etc., etc.] · leaf 121

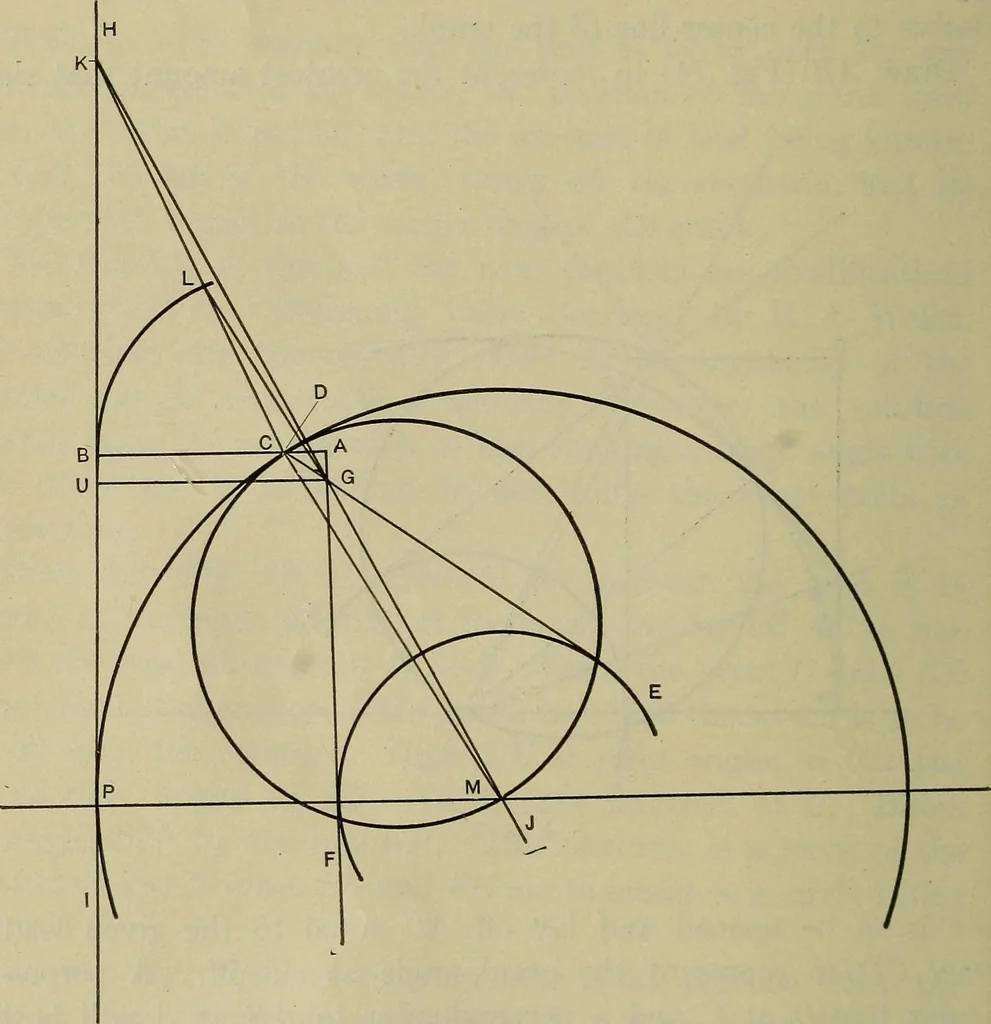

evalve circle) is to GU as MK is to GK. Join C and K. With Gas a center and GU (equal to AB the maximum port opening)■r.s a radius draw the arc UL. Join G and L. Draw CM parallel 100 THE STEAM ENGINE AND OTHER HEAT-MOTORS. to GL and intersecting the bisectrix GJ at M. The trianglesLKG and CKM are… … Fig. 71. The diameter of the valve circle having been found the re-maining points are easily found. Problem.—Given ratio connecting-rod to crank = 5; steam lap1/2, exhaust lap 1/8, and steam lead 1/16 (all on headend);width of steam-ports 1/2, throw of eccentric 1J; steam-pressure40 pounds per…
Steam-engines · Heat-engines
