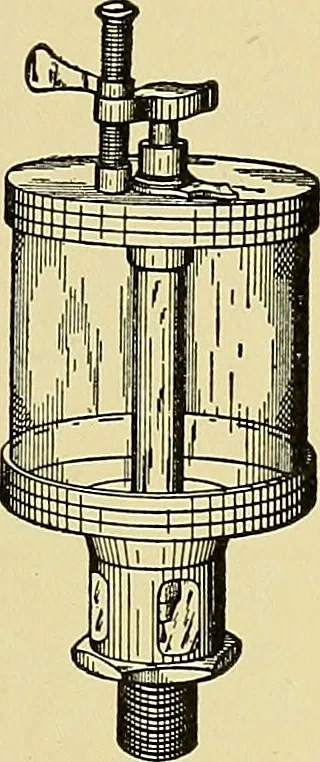

rsted leads fromthe oil in the cup to the tube. Capillary attraction causes theoil to flow continuously and drip down the tube. When not in use,the lamp wick should be withdrawn. This type of oil cup is nowseldom used. The oil cup shown in Fig. 96 is simple and economical. Theopening of the valve… … Fig. 96. Standard Typeof Simple Oil Cup 166 STEAM ENGINES
